Cooler Master MWE 750 Bronze V2 80+ Bronze 750W Power Supply

Cooler Master MWE 750 Bronze-V2, 80 Plus Bronze, 750W Power Supply

80 Plus Bronze Efficiency

The efficiency of your power supply unit is important because it directly affects you system’s performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit’s ability to move power from the wall to your components.

The higher a PSU’s efficiency is, the lower the total amount of power it needs to power your system. The MWE Bronze series has an 80 PLUS Bronze efficiency rating, meaning it has a guaranteed typical efficiency of 85%.

DC-TO-DC Circuit design

Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your parts need requires special components to complete this process quickly, efficiently, and safely.

The MWE Bronze’s DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected hardware.

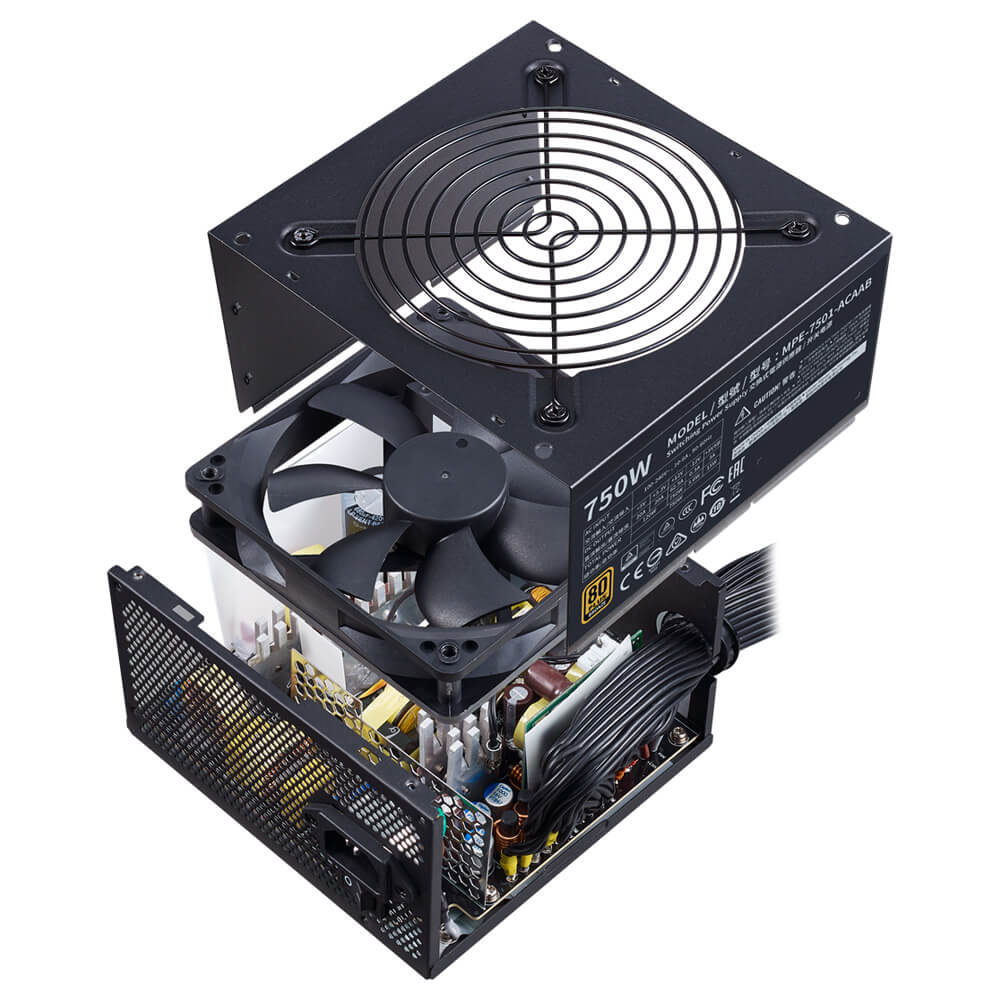

120MM HDB Fan

The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies.

The MWE Bronze tackles this problem with a 120mm HDB fan. The hydro dynamic fan bearing creates less friction, making it great for low RPM operations. This technology keeps the fan running smoothly and efficiently for longer, keeping the noise level down and extending the lifespan of the PSU.

Model

MPE-7501-ACAAB

ATX Version

ATX 12V V2.52

PFC

Active PFC

Input Voltage

100-240V

Input Current

10-6A

Input Frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86 mm

Fan Size

120mm

Fan Bearing

HDB

Fan Speed

2400 RPM

Noise Level @ 20%

12.16 dBA

Noise Level @ 50%

17.9 dBA

Noise Level @ 100%

39.8 dBA

Efficiency

85% Typically

80 PLUS Rating

80 PLUS Bronze

ErP 2014 Lot 3

Yes

Operating Temperature

40°C

Power Good Signal

100 - 500 ms

Hold Up Time

>18ms at 100% Full Load@230Vac

MTBF

>100,000 Hours

Protections

OVP, OPP, SCP, UVP, OTP

Regulatory

CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

ATX 24 Pin Connectors

1

EPS 4+4 Pin Connectors

1

EPS 8 Pin Connector

1

SATA Connectors

8

Peripheral 4 Pin Connectors

4

PCI-e 6+2 Pin Connectors

4

80 Plus

Bronze

Modular

Non Modular

Wattage

500 to 750W

Series

MWE Bronze Series
