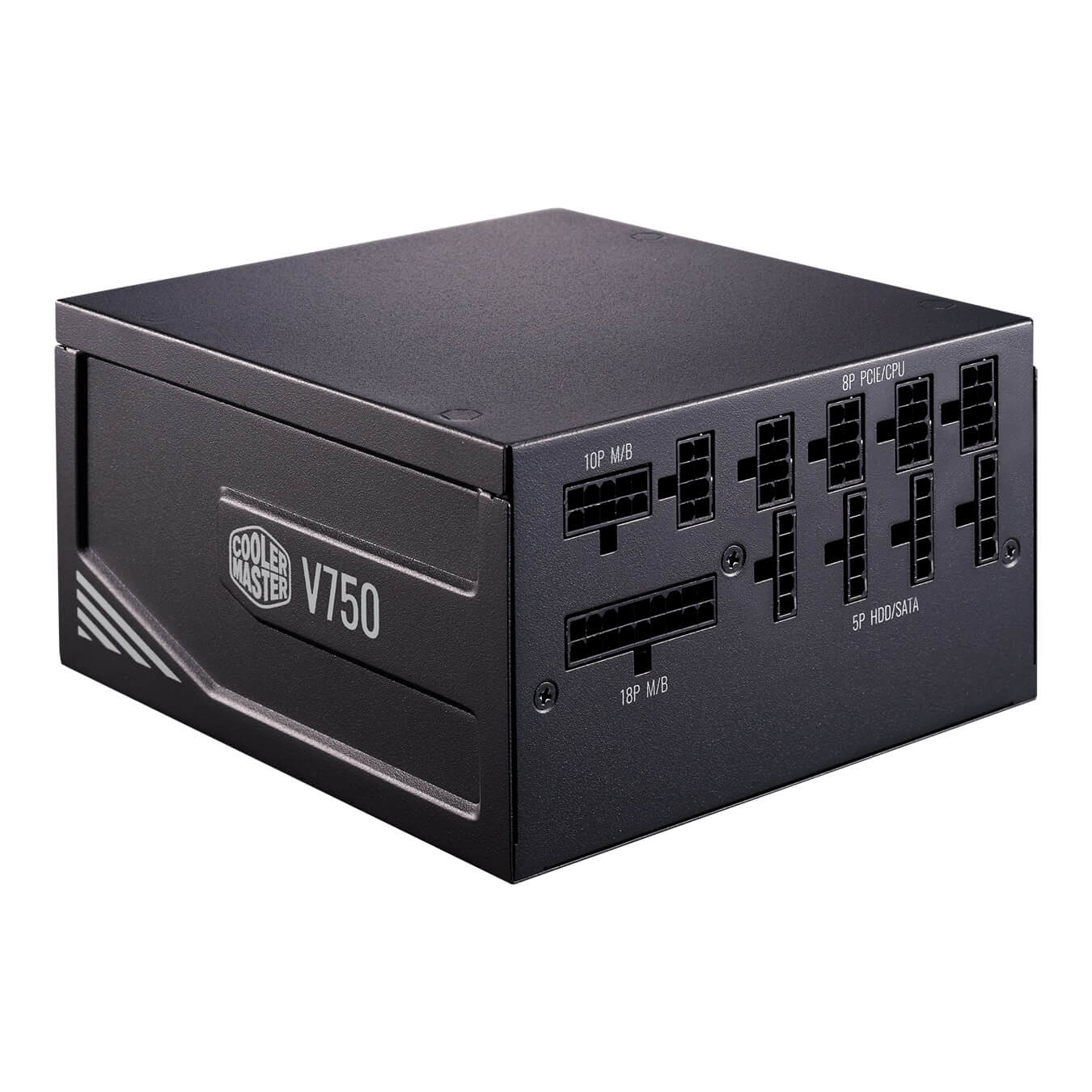

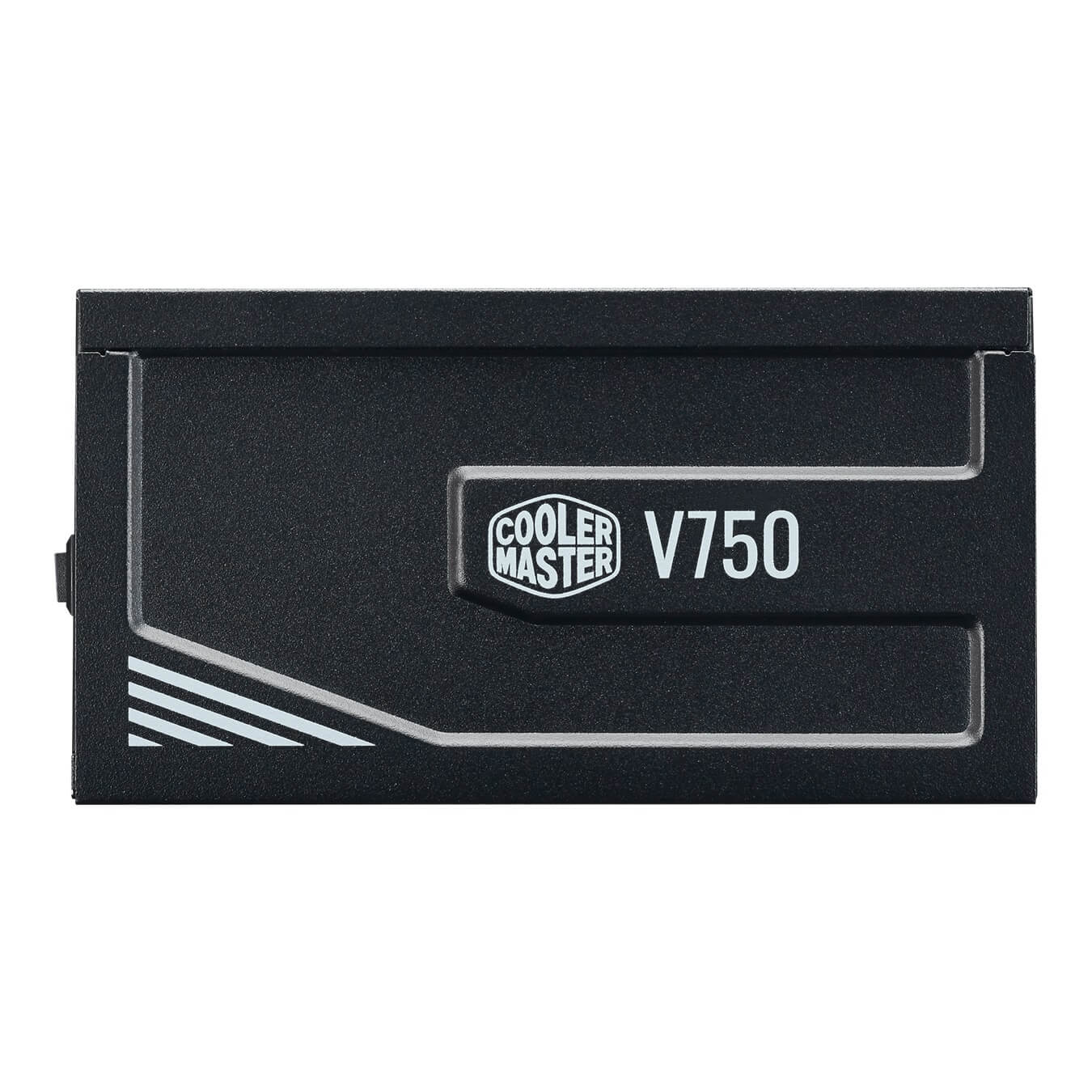

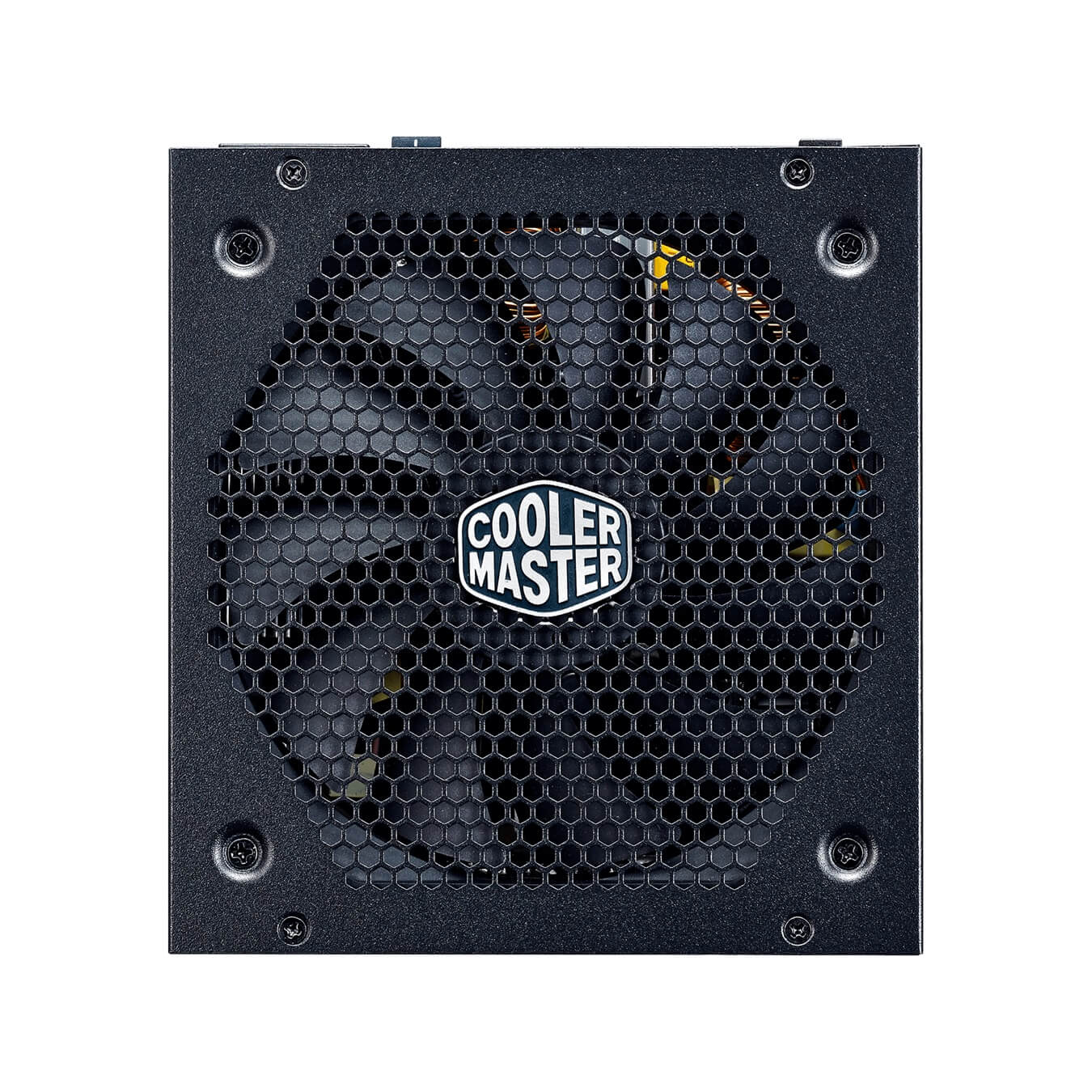

Cooler Master V750 Gold - V2 Semi-Fanless Full-modular 750 Watts ATX Gaming Power Supply - Black
Cooler Master V-Series V750 Gold V2 750W ATX |

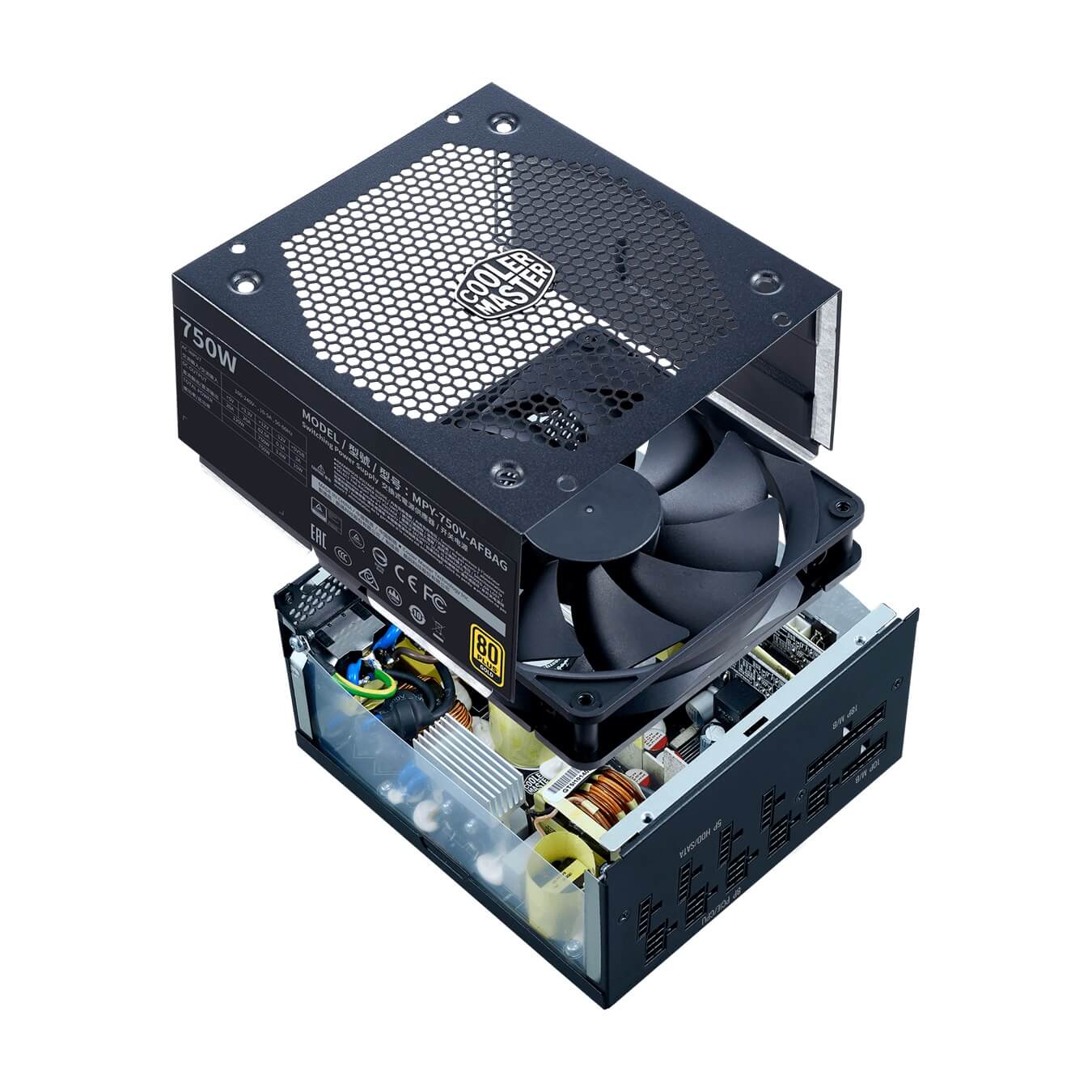

80 Plus Gold CertifiedÂThe efficiency of your power supply unit is important because it directly affects you system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components.The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The V Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.Performance Driven TopologyÂThe V Gold - v2 is a professional grade power supply unit made for the normal user. It's more than just the 80 PLUS Gold efficiency rating. It's the performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside.The half-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.Full-modular CablingÂCabling is often the most troublesome part of building a PC. The V Gold can't solve all your cabling problems but it's an excellent place to start. With full control and customization of your cables, you don't have to have excess cables cluttering your PC.This level of control can reduce cable bulk which can increase airflow and make your system look as great as it runs. And with the included 16AWG PCIe cables, you'll get increases to both efficiency and style. |
Specification
Model |
MPY-750V-AFBAG |
ATX Version |
ATX 12V V2.52 |
PFC |
Active PFC |
Input Voltage |
100-240V |
Input Current |
10-5A |
Input Frequency |
50-60Hz |
Dimensions (L x W x H) |
160 x 150 x 86 mm |
Fan Size |
135mm |
Fan Bearing |
FDB |
Fan Speed |
1545 RPM |
Noise Level @ 20% |
0 dBA |
Noise Level @ 50% |
23.6 dBA |
Noise Level @ 100% |
32.5 dBA |
Efficiency |
90% @ Typical Load |
80 PLUS Rating |
80 PLUS Gold |
ErP 2014 Lot 3 |
Yes |
Operating Temperature |
0-50°C |
Power Good Signal |
100 - 500 ms |
Hold Up Time |
17ms |
MTBF |
>100,000 Hours |
Protections |
OVP, OPP, SCP, OCP, UVP, OTP |
Regulatory |
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
ATX 24 Pin Connectors |
1 |
EPS 4+4 Pin Connectors |
1 |
EPS 8 Pin Connector |
1 |
SATA Connectors |
12 |
Peripheral 4 Pin Connectors |
4 |
PCI-e 6+2 Pin Connectors |
4 |
Series |
V Gold Series |
80 Plus |
Gold |
Modular |
Full Modular |
Wattage |
500 to 750W |
