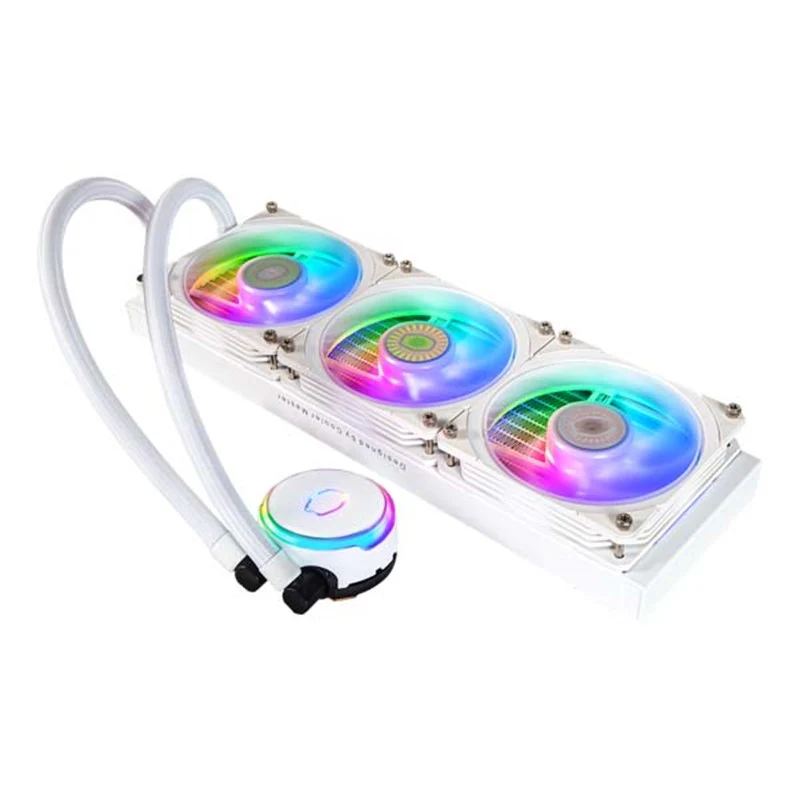

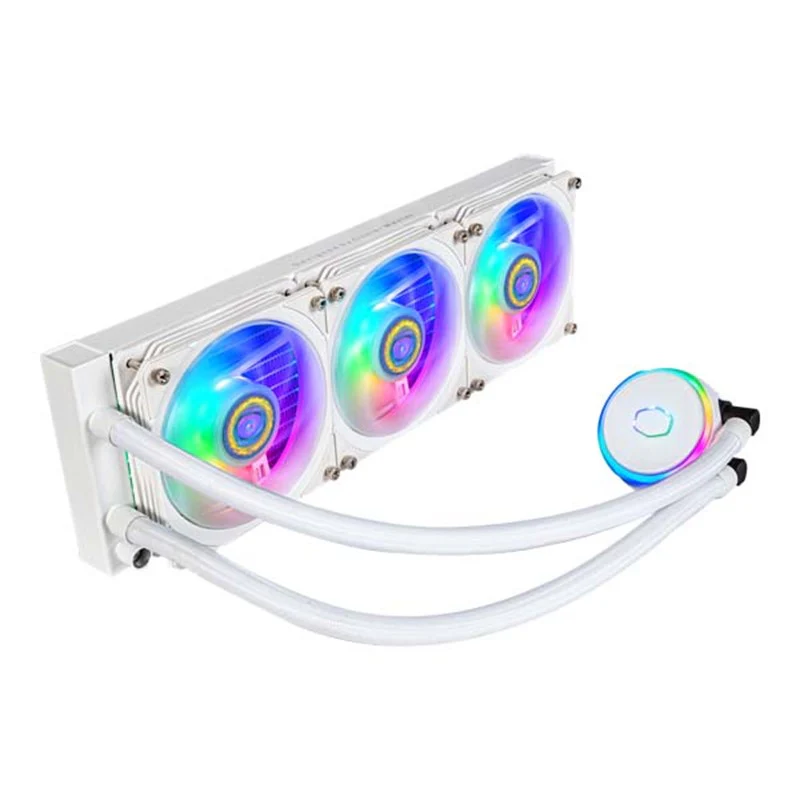

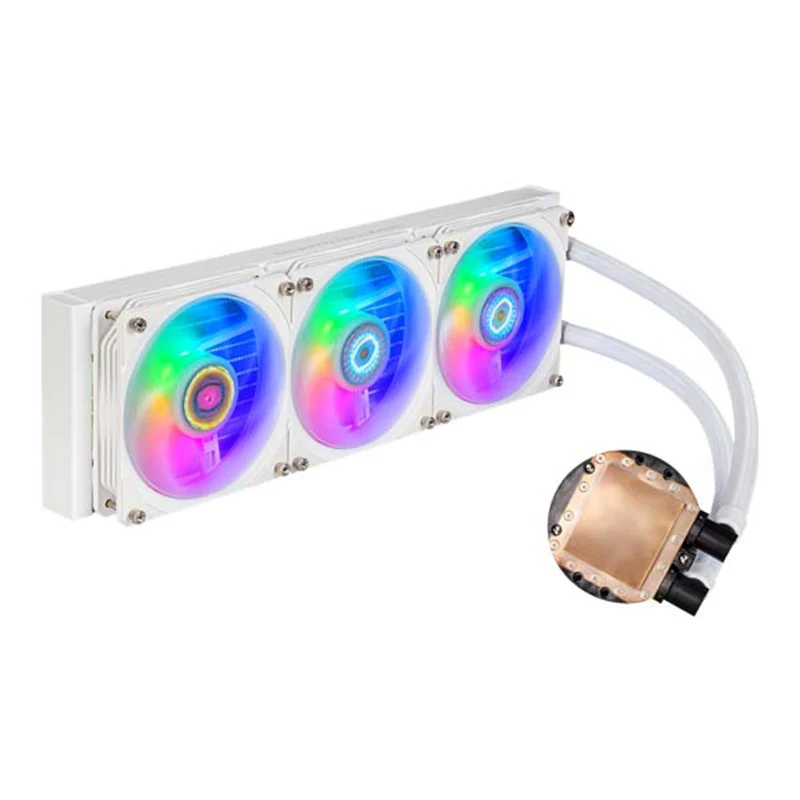

CoolerMaster MasterLiquid PL360 Flux ARGB CPU Liquid Cooler - White Edition

CoolerMaster MasterLiquid PL360 Flux ARGB CPU Liquid Cooler

COOLING UNCOMPROMISED

Cooler Master’s Flux is the new embodiment of enhanced performance cooling. The dual chamber pump has further honed flow and pressure to target hot spots for rapid and precise heat dissipation.

PERFORMANCE DUAL CHAMBER

New Compact Performance Dual Chamber pump delivers the perfect balance of water flow and pressure for impressive cooling.

SUPERIOR PERFORMANCE RATIO

Precision engineered ultra-thin spaded fins maximizes microchannels accurately targets heat spots. Enlarged copper base surface area optimized with ideal base thickness accelerates heat transfer.

ULTIMATE HEAT EXCHANGE

High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.

SLIM & SLEEK RADIATOR

Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.

ENHANCED AIR BALANCE FAN BLADES

120 mm square frame ARGB fan designed with inter-connecting air balance fan blades uniquely modified for the PL-Flux Series.

PL-FLUX SPECIFIC FANS

Inter-conneting air balance fan blades increased sturdiness and stability operating steadily at high speed. Angled inner rim of fan frame increasing intake of air, at the same time gap between from and blades creating greater air pressure.

DUAL LOOP ARGB PUMP LIGHTING

Addressable Gen 2 RGB ready for independent implemented customization

NEW GEN 2 ADDRESSABLE RGB

Included Gen 2 ARGB controller works with Cooler Master's MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more – all from an intuitive, convenient interface

Exterior Color

White

CPU Socket

LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, TR4

Radiator Material

Aluminum

Radiator Dimensions

394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.07"

Pump Dimensions

89 x 75 x 40 mm / 3.5 x 2.95 x 1.57"

Pump MTTF

>210,000 Hours

Pump Noise Level

15 dBA (Max)

Pump Connector

4-Pin

Pump Rated Voltage

12 VDC

Pump Power Consumption

6 Watts

Fan Dimensions (L x W x H)

120 x 120 x 25 mm / 4.7 x 4.7 x 1"

Fan Quantity

3 Pcs

Fan LED Type

Addressable Gen 2 RGB

Fan Speed

0-2300 RPM ± 10%

Fan Airflow

72.37 CFM (Max)

Fan Noise Level

32 dBA (Max)

Fan Pressure

2.96 mmH₂O (Max)

Fan Bearing Type

Oil Reflow Bearing System

Fan MTTF

>160,000 Hours

Fan Power Connector

4-Pin (PWM)

Fan Rated Voltage

12 VDC

Fan Rated Current

0.15A

Fan Safety Current

0.3A

Series

MasterLiquid Pro

Cooler Type

Liquid Cooler

Radiator Size

360

Patent Number

US10739084B2, US11061450B2, US10409341B2, US11320874B2, US11474574B2
