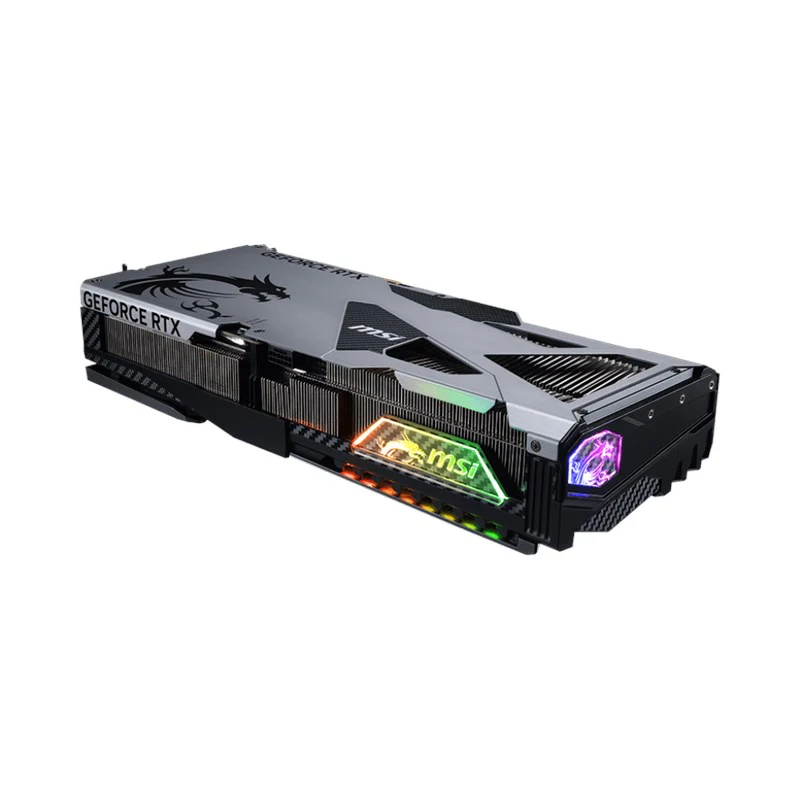

MSI GeForce RTX 5070 Ti 16 GB VANGUARD SOC LAUNCH EDITION GDDR7 Gaming Graphics Card

MSI GeForce RTX 5070 Ti 16 GB VANGUARD SOC LAUNCH EDITION GDDR7 Gaming Graphics Card

Powered by the NVIDIA Blackwell architecture and DLSS 4

Core Clocks

Extreme Performance: 2602 MHz (MSI Center)

Boost: 2588 MHz (GAMING & SILENT Mode)

HYPER FROZR THERMAL DESIGN

An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.

STORMFORCE Fan

Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

Advanced Vapor Chamber

Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.

Core Pipes

Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.

Filled Fins

Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.

Wave Curved 4.0

Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.

Air Antegrade Fin 2.0

The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

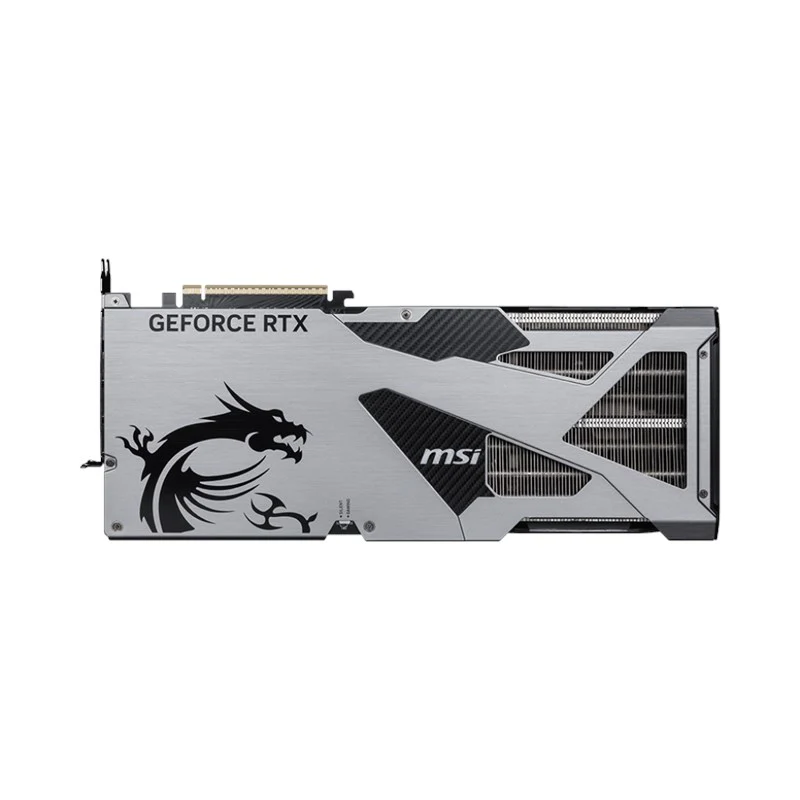

Metal Backplate

A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.

Dual BIOS

Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner

Take full control with the most recognized and widely used graphics card overclocking software in the world.

Marketing Name

GeForce RTX 5070 Ti 16G VANGUARD SOC LAUNCH EDITION

Model Name

G507T-16VGSL

Graphics Processing Unit

NVIDIA GeForce RTX 5070 Ti

Interface

PCI Express Gen 5

Core Clocks

Extreme Performance: 2602 MHz (MSI Center)
Boost: 2588 MHz (GAMING & SILENT Mode)

CUDA CORES

8960 Units

Memory Speed

28 Gbps

Memory

16 GB GDDR7

Memory Bus

256-bit

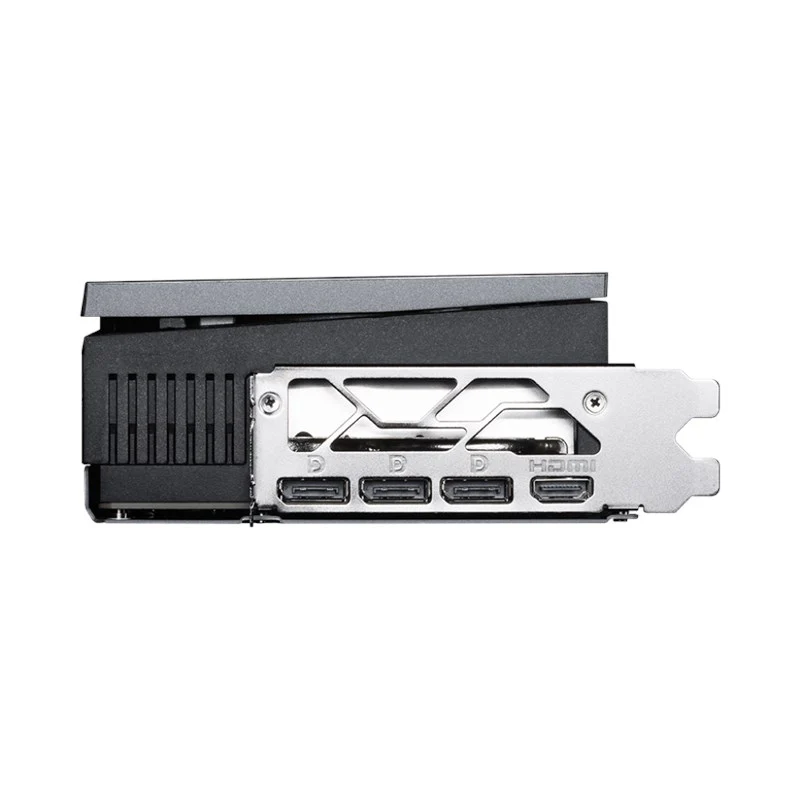

Output

DisplayPort x 3 (v2.1b)
HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480 Hz or 8K 120 Hz with DSC, Gaming VRR, HDR)

HDCP Support

Y

Power consumption

300 W

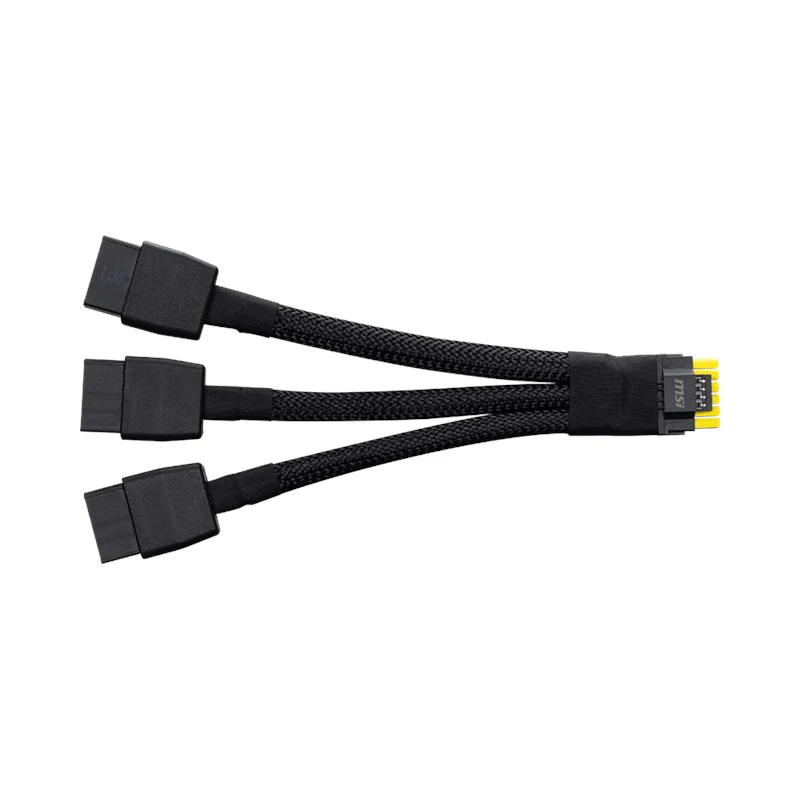

Power connectors

16-pin x 1 (ATX 3.1 PSU recommended)

Recommended PSU

750 W

Card Dimension (mm)

357 x 151 x 66mm

Weight (Card / Package)

1945 g / 3991 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC technology

Y

Digital Maximum Resolution

7680 x 4320
