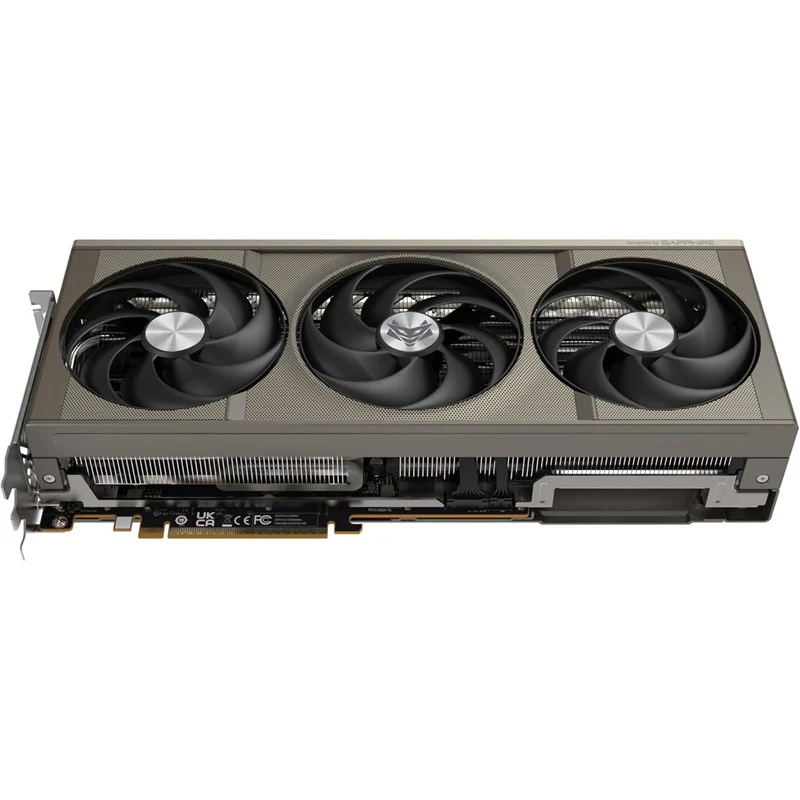

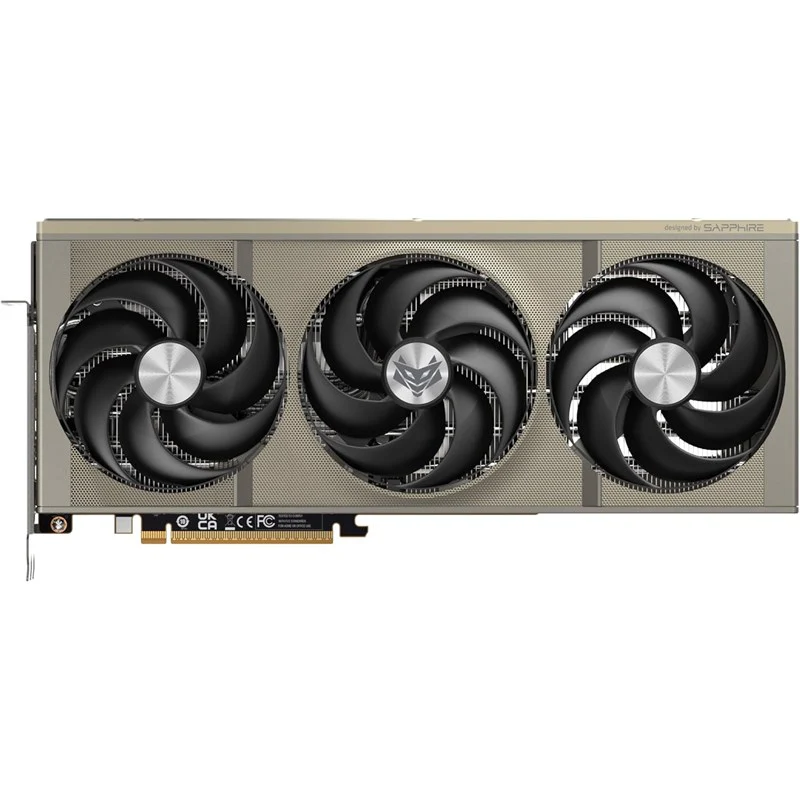

Sapphire NITRO+ AMD RADEON RX 9070 GAMING OC 16GB GDDR6 Gaming Graphics Card

Sapphire NITRO+ AMD RADEON RX 9070 GAMING OC 16GB GDDR6 Gaming Graphics Card

AeroCurve Fan Blade

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

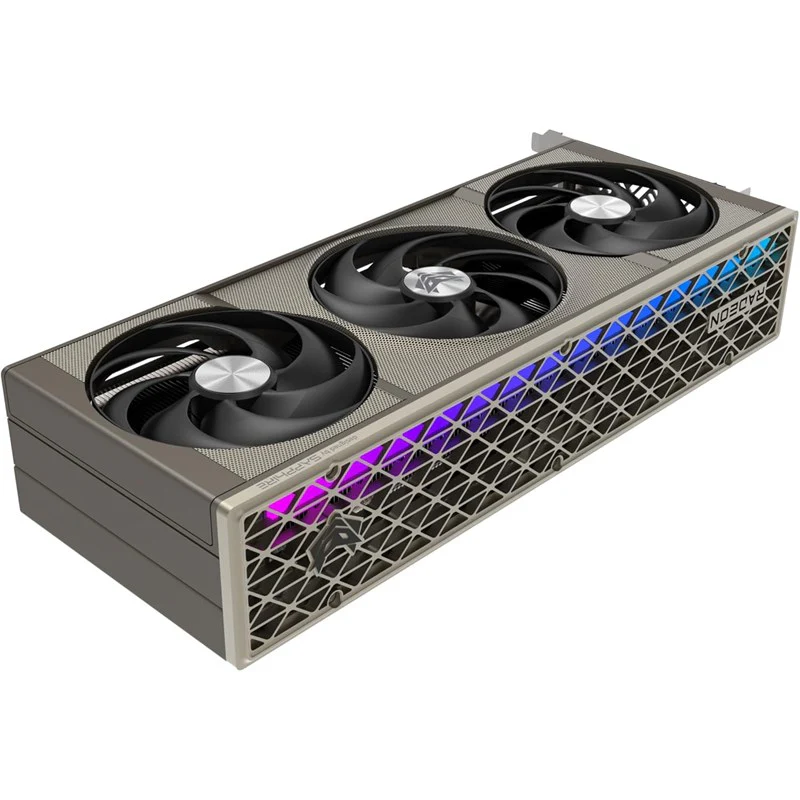

ARGB Light Bar

With tasteful shroud design augmented by ARGB LEDs, you can change the colors of the LED, for a customized design. This can be controlled via TriXX software. Choose from different modes including the colourful rainbow mode or turn off the LEDs.

Fan Quick Connect

If there’s a fan problem, you don’t have to return the entire card. SAPPHIRE or our channel partners will send out a replacement fan directly to you! That means they’re easy to remove, clean and replace, with just one screw holding them securely in place.

GPU

AMD Radeon RX 9070 Graphics Card

AMD RDNA 4 Architecture

Engine Clock

Boost Clock: Up to 2700 MHz

Game Clock: Up to 2210MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

3584

Compute Units

56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64 MB

Ray Accelerators

56

AI Accelerator

112

Memory Size/Bus

16 GB/256 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI: 7680×4320

DisplayPort 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

2x HDMI

2x DisplayPort 2.1a

BIOS Support

UEFI

Game Index

4K

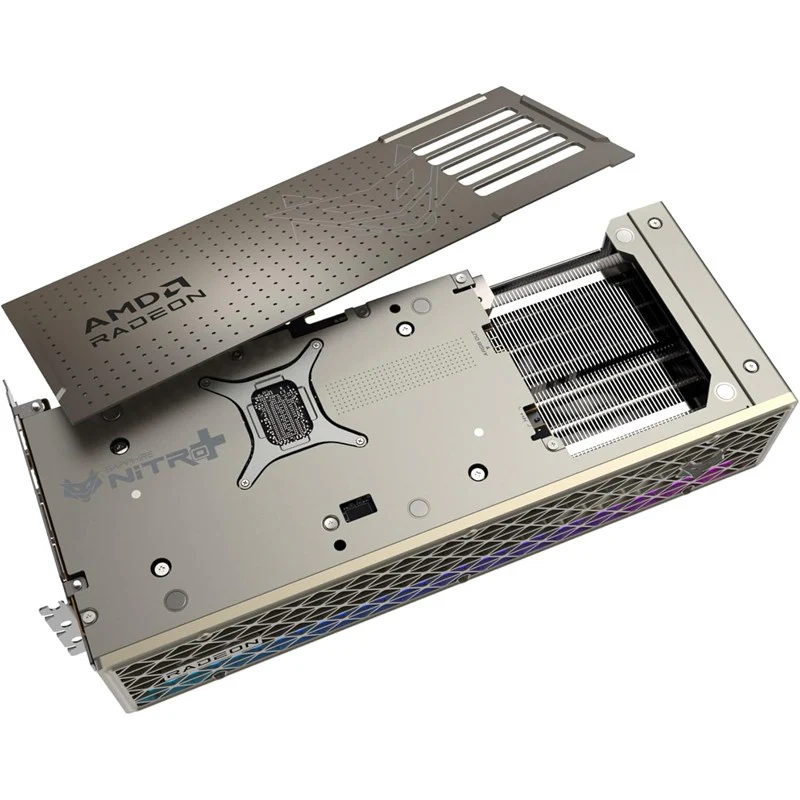

Cooler Type

Tri-X Cooling

AeroCurve Fan Blade

Free Flow

Integrated Cooling Module

High TG Copper PCB

Optimized Composite Heatpipes

Two-Ball Bearing

Form Factor

3.2 slot, ATX

Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm

Power Consumption

245W Typical Board Power

OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 650 Watts Power Supply

12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)

PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8 GB of system memory. 16 GB recommended.
