MSI GeForce RTX 5070 Ti 16 GB VENTUS 3X OC GDDR7 Gaming Graphics Card

MSI GeForce RTX 5070 Ti 16 GB VENTUS 3X OC GDDR7 Gaming Graphics Card

Powered by the NVIDIA Blackwell architecture and DLSS 4

SFF-Ready Enthusiast GeForce Card

Core Clock

Extreme Performance: 2497 MHz (MSI Center)

Boost: 2482 MHz

TORX Fan 5.0

Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.

Nickel-plated Copper Baseplate

Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.

Core Pipe

Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

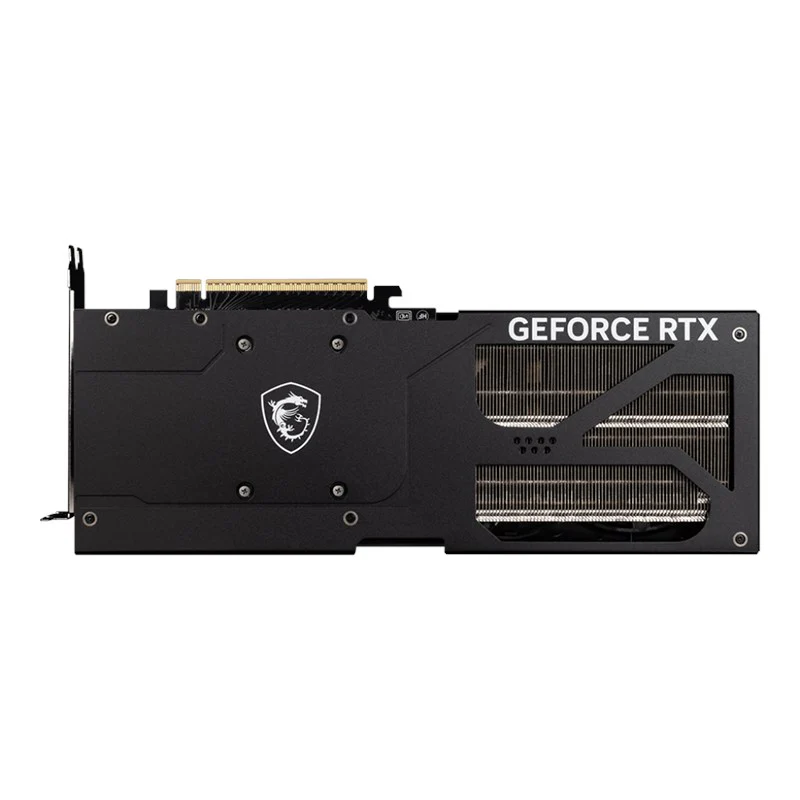

Metal Backplate

A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner

Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Build Small. Play Big.

You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Triple-Fan Thermal Design

Three fans on a large heatsink deliver both superior and quieter cooling.

TAKE THE ESSENTIALS

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Marketing Name

GeForce RTX 5070 Ti 16G VENTUS 3X OC

Model Name

G507T-16V3C

Graphics Processing Unit

NVIDIA GeForce RTX 5070 Ti

Interface

PCI Express Gen 5

Core Clocks

Extreme Performance: 2497 MHz (MSI Center)
Boost: 2482 MHz

CUDA CORES

8960 Units

Memory Speed

28 Gbps

Memory

16 GB GDDR7

Memory Bus

256-bit

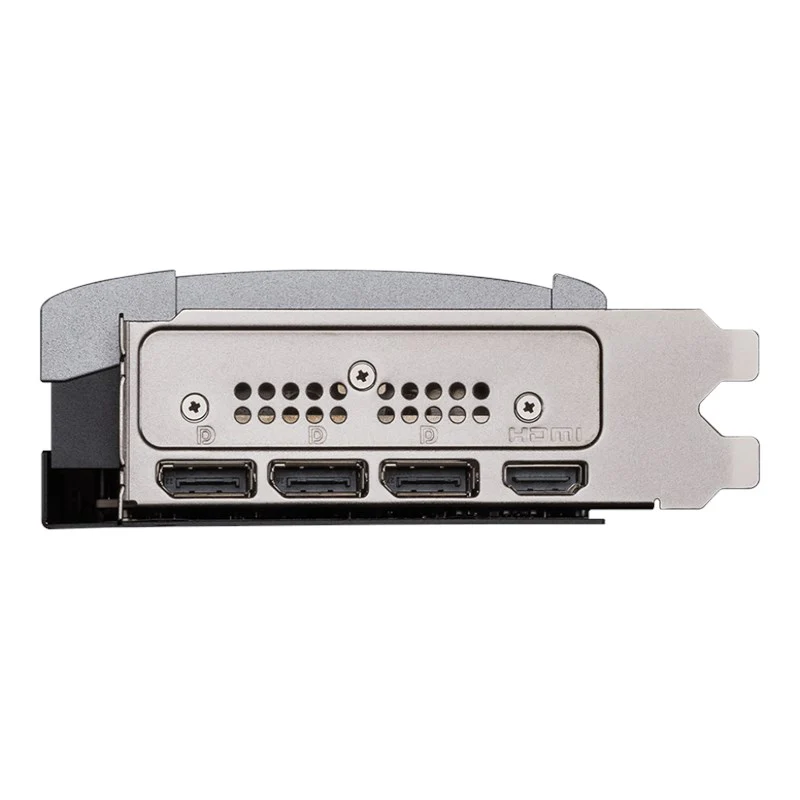

Output

DisplayPort x 3 (v2.1b)
HDMI x 1 (As specified in HDMI 2.1b: up to 4K 480 Hz or 8K 120 Hz with DSC, Gaming VRR, HDR)

HDCP Support

Y

Power consumption

300 W

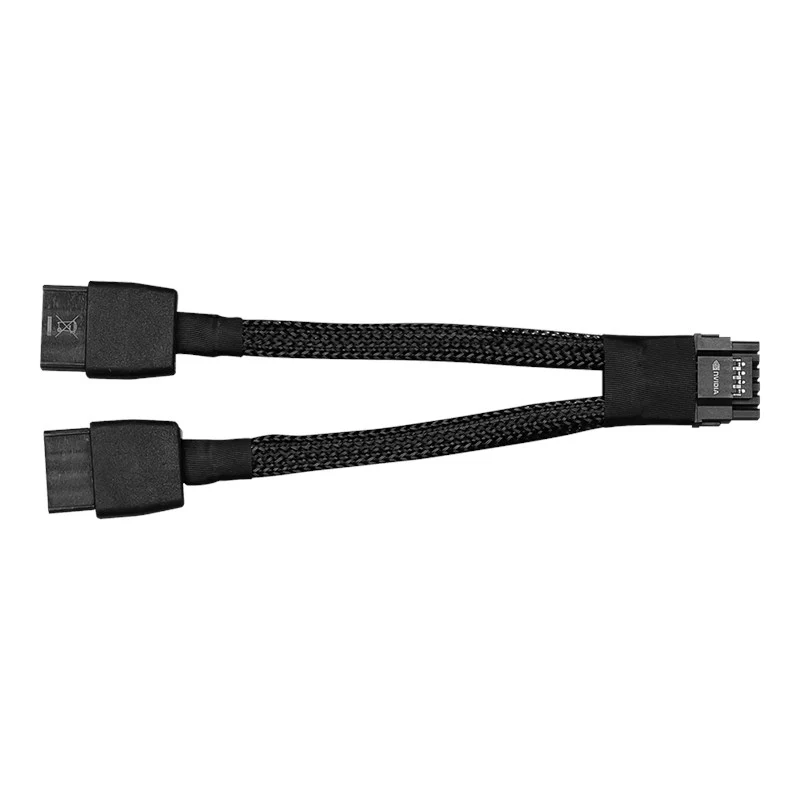

Power connectors

16-pin x 1 (ATX 3.1 PSU recommended)

Recommended PSU

750 W

Card Dimension (mm)

303 x 121 x 49mm

Weight (Card / Package)

1073 g / 1566 g

DirectX Version Support

12 Ultimate

OpenGL Version Support

4.6

Maximum Displays

4

G-SYNC technology

Y

Digital Maximum Resolution

7680 x 4320
