TP-Link AX3000 Wall Plate WiFi 6 Access Point

TP-Link AX3000 Wall Plate WiFi 6 Access Point

Lightning-Fast AX3000 WiFi 6 Speeds

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.

More than Speed, Security Matters

Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks

Full Gigabit Ports to Bridge Network

Wired devices like VoIP phones can be powered with no need for extra electrical cables.

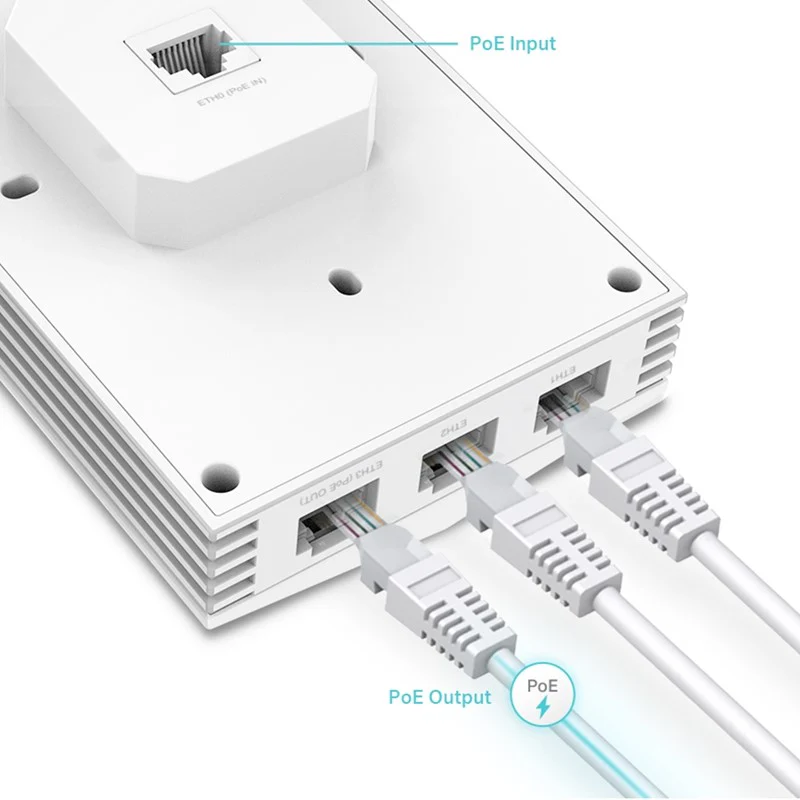

The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port

Effortless Deployment with PoE Powered

With 802.3af/802.3at PoE support, there’s no need for more wiring. Plug it into the existing Ethernet cables, and you’re ready.

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Management with the Omada App

Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.

Harware Features

Interface

• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)

Physical Security Lock

No

Button

Reset, LED

Power Supply

802.3af/at PoE

Power Consumption

• EU: 12W (802.3at PoE, PoE Out off)
• US: 12.6W (802.3at PoE, PoE Out off)

Dimensions

143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)

Antenna

2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 5 dBi

Mounting

Wall Plate Mounting (Kits included)

Wireless Features

Coverage

50㎡(600 ft²)***

Maximum Number of Wireless Clients

100+△

Concurrent Clients

100+

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming§
• Beamforming
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP

Wireless Security

• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:
<20 dBm (2.4GHz, EIRP)
<23 dBm (5GHz band1 & 2, EIRP)
<26 dBm (5GHz band3, EIRP)

• FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)

Management

Omada App

Yes

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Others

Certification

FCC, RoHS

Package Contents

• AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
• Installation Guide
• Mounting Kits

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
