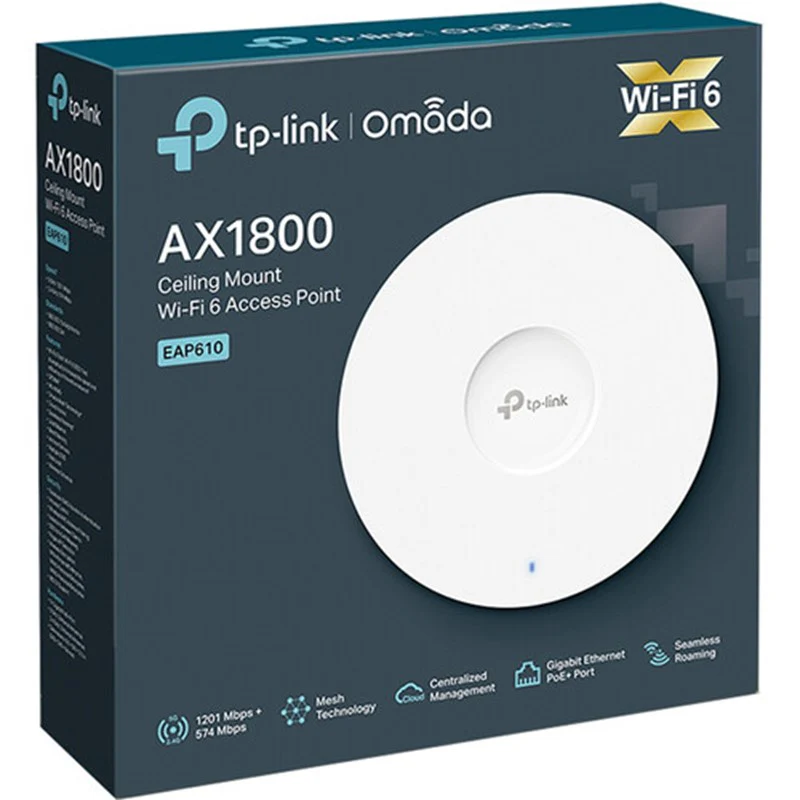

TP-Link EAP610 AX1800 Ceiling Mount Wi-Fi 6 Access Point

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

TP-Link EAP610 AX1800 Ceiling Mount Wi-Fi 6 Access Point

TP-Link EAP610 AX1800 Ceiling Mount Wi-Fi 6 Access Point

Expand your business's Wi-Fi coverage, cutting through high-density spaces with the EAP610 V2 AX1800 Wireless Dual-Band Access Point from TP-Link. Designed with an appearance that discreetly blends into most environments when mounted on a wall or ceiling using the included kit, this dual-band 802.11ax Wi-Fi access point delivers up to 1775 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies. The EAP610 V2 sports a smaller design than the previous version, making it easier to hide in plain sight. This access point can also be used to expand the coverage of your Omada Mesh network.

You can operate the EAP610 V2 using its included power adapter or by transferring power and data through one cable by connecting its PoE+ complaint Gigabit Ethernet port to an 802.3at or passive PoE compatible network switch or router. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

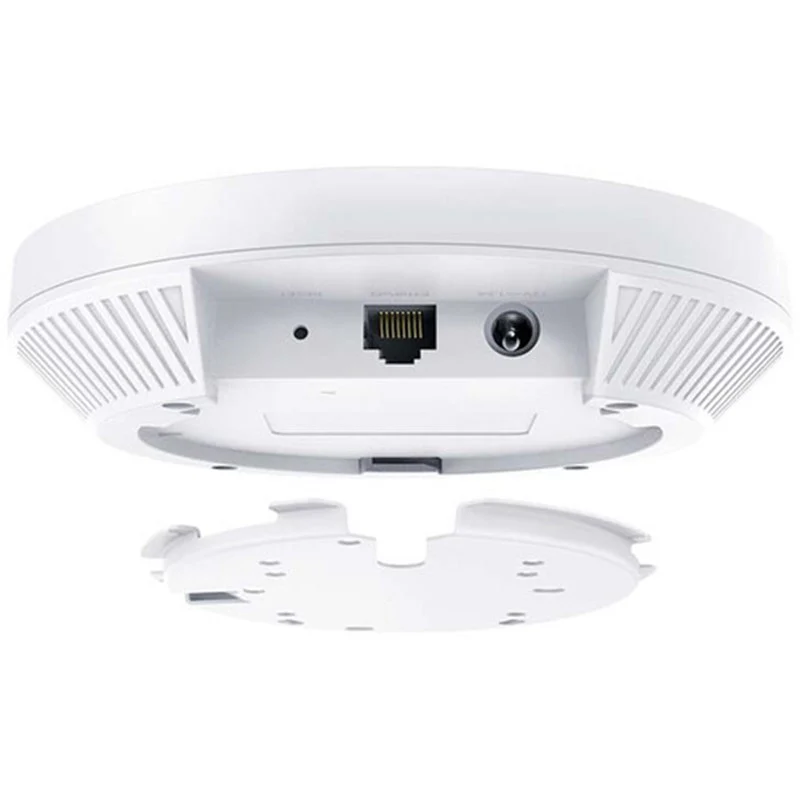

Ceiling and Wall Mountable

The EAP610 V2 features a design that blends into most environments when mounted on a ceiling or wall using the included kit.

Fast, Reliable Wi-Fi

This 802.11ax Wi-Fi access point includes powerful internal antennas that are designed to overcome high-density environments, using beamforming, MU-MIMO, load balancing, and band steering technologies to efficiently deliver up to 1775 Mb/s over the 2.4 GHz and 5 GHz wireless frequencies.

Omada Mesh Compatible

Enjoy seamless roaming from room to room using a single network ID (SSID) by including this access point as part of your Omada Mesh network.

Omada Cloud

The cloud-based Omada platform allows you to configure, manage, and monitor all your supported network devices from a single interface, which can be accessed virtually anywhere at any time.

Specification:

Wireless



Wi-Fi

Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)

MU-MIMO Support

2 x 2

Antenna Gain

4 to 5 dBi

Transmit Power

20 to 25 dBm

Supported Protocols

SNMPv1



SNMPv2c



SNMPv3

Antenna Placement

Internal

Bluetooth

None

Throughput

1775 Mb/s Total



5 GHz: 1201 Mb/s



2.4 GHz: 574 Mb/s

Interface



Inputs/Outputs

1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+

USB Sharing Support

No

Security



Guest Network Support

Yes

Wireless Security

WPA-PSK, WPA-Enterprise, WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise

Lock Slot

No

Management



Operation Modes

Access Point

Max SSIDs Supported

16

Hardware



Supported IEEE Standards

802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.3at, 802.3x

Electrical



DC Input Power

12 VDC at 1.5 A

Power Consumption

≤14.2 W

Environmental



Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-40 to 158°F / -40 to 70°C

Operating Humidity

10 to 90%

Storage Humidity

5 to 90%

General



IP Rating

None

Mount Options

Wall, Ceiling

Dimensions

6.3 x 6.3 x 1.3" / 160 x 160 x 33.6 mm

Packaging Info



Package Weight

1.765 lb

Box Dimensions (LxWxH)

10.2 x 9 x 2.5"



$30.46

Original: $87.03

-65%
TP-Link EAP610 AX1800 Ceiling Mount Wi-Fi 6 Access Point

$87.03

$30.46

Product Information

Shipping & Returns

Description

TP-Link EAP610 AX1800 Ceiling Mount Wi-Fi 6 Access Point

Expand your business's Wi-Fi coverage, cutting through high-density spaces with the EAP610 V2 AX1800 Wireless Dual-Band Access Point from TP-Link. Designed with an appearance that discreetly blends into most environments when mounted on a wall or ceiling using the included kit, this dual-band 802.11ax Wi-Fi access point delivers up to 1775 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies. The EAP610 V2 sports a smaller design than the previous version, making it easier to hide in plain sight. This access point can also be used to expand the coverage of your Omada Mesh network.

You can operate the EAP610 V2 using its included power adapter or by transferring power and data through one cable by connecting its PoE+ complaint Gigabit Ethernet port to an 802.3at or passive PoE compatible network switch or router. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

Ceiling and Wall Mountable

The EAP610 V2 features a design that blends into most environments when mounted on a ceiling or wall using the included kit.

Fast, Reliable Wi-Fi

This 802.11ax Wi-Fi access point includes powerful internal antennas that are designed to overcome high-density environments, using beamforming, MU-MIMO, load balancing, and band steering technologies to efficiently deliver up to 1775 Mb/s over the 2.4 GHz and 5 GHz wireless frequencies.

Omada Mesh Compatible

Enjoy seamless roaming from room to room using a single network ID (SSID) by including this access point as part of your Omada Mesh network.

Omada Cloud

The cloud-based Omada platform allows you to configure, manage, and monitor all your supported network devices from a single interface, which can be accessed virtually anywhere at any time.

Specification:

Wireless



Wi-Fi

Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)

MU-MIMO Support

2 x 2

Antenna Gain

4 to 5 dBi

Transmit Power

20 to 25 dBm

Supported Protocols

SNMPv1



SNMPv2c



SNMPv3

Antenna Placement

Internal

Bluetooth

None

Throughput

1775 Mb/s Total



5 GHz: 1201 Mb/s



2.4 GHz: 574 Mb/s

Interface



Inputs/Outputs

1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+

USB Sharing Support

No

Security



Guest Network Support

Yes

Wireless Security

WPA-PSK, WPA-Enterprise, WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise

Lock Slot

No

Management



Operation Modes

Access Point

Max SSIDs Supported

16

Hardware



Supported IEEE Standards

802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.3at, 802.3x

Electrical



DC Input Power

12 VDC at 1.5 A

Power Consumption

≤14.2 W

Environmental



Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-40 to 158°F / -40 to 70°C

Operating Humidity

10 to 90%

Storage Humidity

5 to 90%

General



IP Rating

None

Mount Options

Wall, Ceiling

Dimensions

6.3 x 6.3 x 1.3" / 160 x 160 x 33.6 mm

Packaging Info



Package Weight

1.765 lb

Box Dimensions (LxWxH)

10.2 x 9 x 2.5"
