TP-LINK EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Access Point

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

TP-LINK EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Access Point

TP-LINK EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Access Point

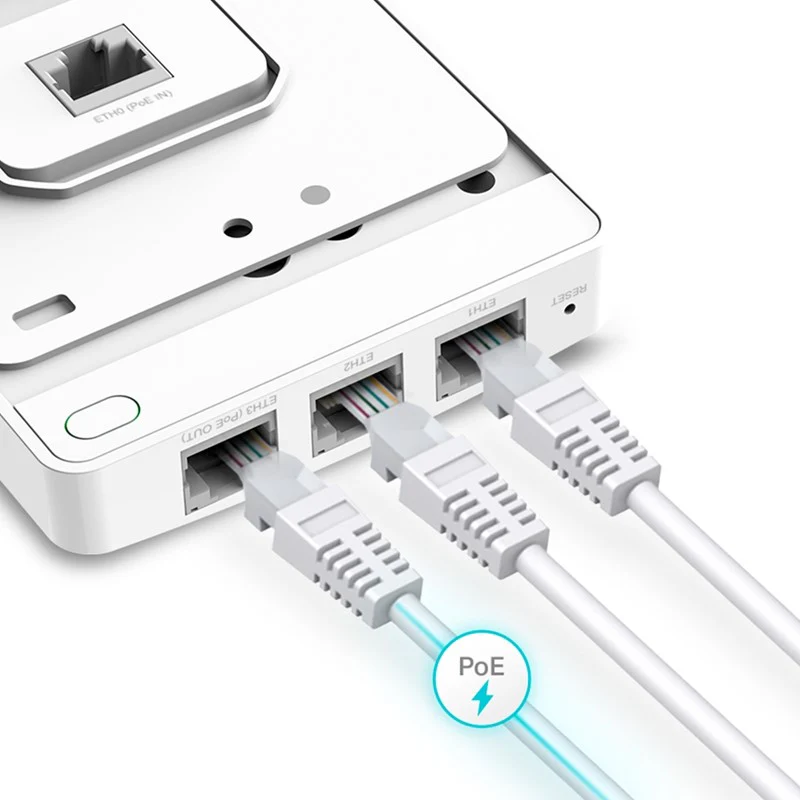

Expand your business's Wi-Fi coverage and cut through high-density spaces with the EAP615-Wall AX1800 Wireless Dual-Band Gigabit Wall Plate Access Point from TP-Link. Designed to discreetly blend into most environments when mounted onto a wall junction box using the included kit, this dual-band 802.11ax Wi-Fi access point delivers up to 1775 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies. Both power and data are carried to the EAP615-Wall through a single cable by connecting its 802.3at PoE+ complaint Gigabit Ethernet port to a compatible network switch or router. Three Gigabit Ethernet ports are also available, one of which supports up to 12W PoE+ passthrough, to connect wired devices such as computers, VoIP phones, printers, and more. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

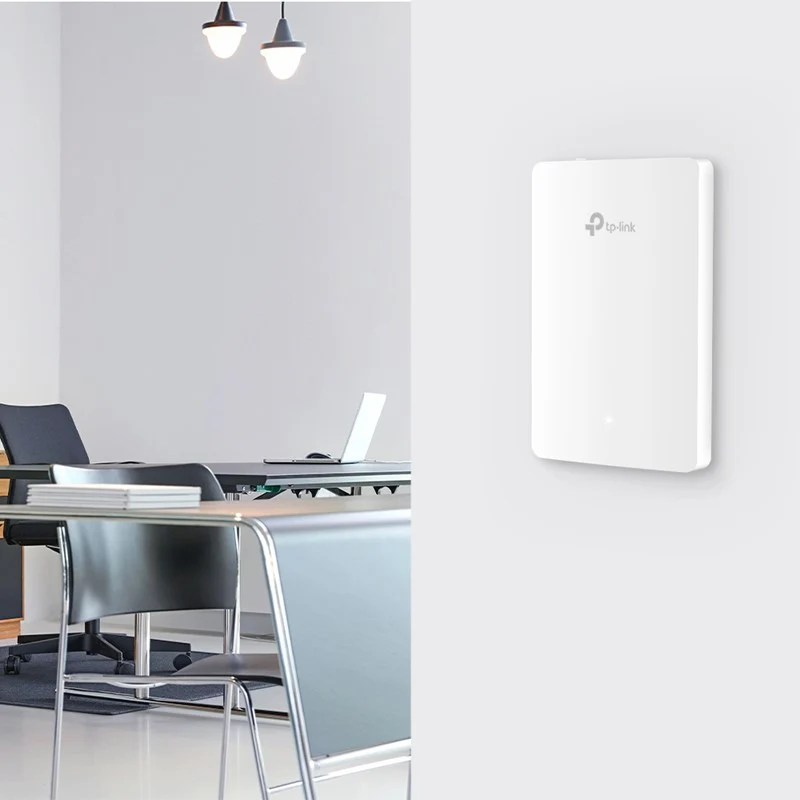

Ceiling and Wall Mountable

The EAP615-Wall features a design that blends into most environments when mounted on a wall junction box using the included kit.

Fast, Reliable Wi-Fi

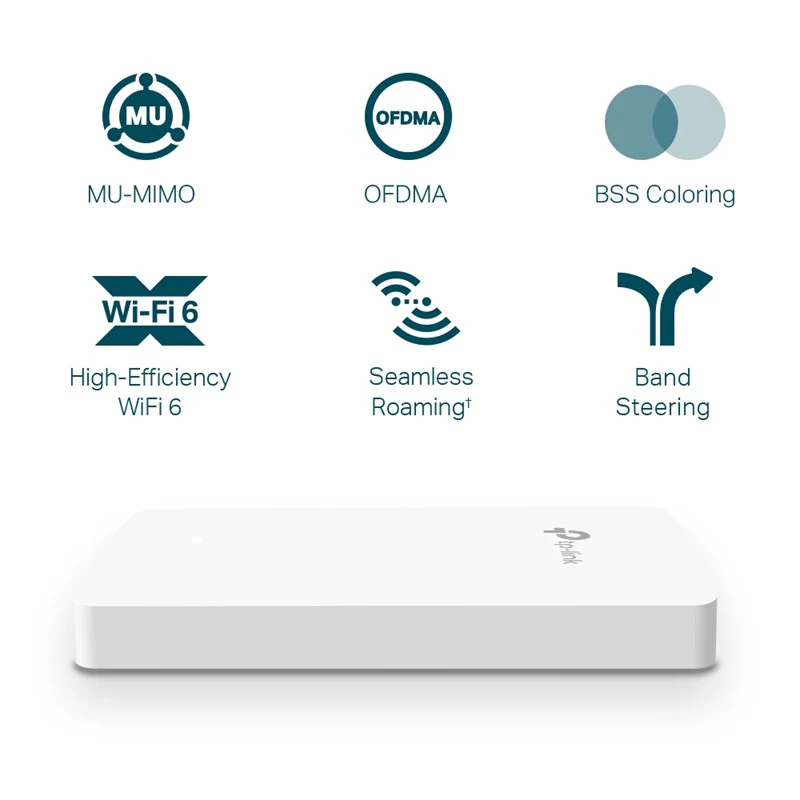

This 802.11ax Wi-Fi access point includes powerful internal antennas that are designed to overcome high-density environments, using beamforming, MU-MIMO, load balancing, and band steering technologies to efficiently deliver up to 1775 Mb/s over the 2.4 GHz and 5 GHz wireless frequencies.

Omada Cloud

The cloud-based Omada platform allows you to configure, manage, and monitor all your supported network devices from a single interface, which can be accessed virtually anywhere at any time.

Specification:

Wireless



Wi-Fi

Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)

MU-MIMO Support

2 x 2

Antenna Gain

3 to 4 dBi

Transmit Power

20 to 23 dBm

Supported Protocols

SNMPv1



SNMPv2c



SNMPv3



SSID

Antenna Placement

Internal

Bluetooth

None

Throughput

1775 Mb/s Total



5 GHz: 1201 Mb/s



2.4 GHz: 574 Mb/s

Interface



Inputs/Outputs

1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+



1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Pass-Through) PoE+



2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)

USB Sharing Support

No

Security



Guest Network Support

Yes

Wireless Security

WPA-PSK, WPA-Enterprise, WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise

Lock Slot

No

Management



Operation Modes

Access Point

Max SSIDs Supported

16

Hardware



Supported IEEE Standards

802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.1x, 802.3af, 802.3at

Environmental



Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-40 to 158°F / -40 to 70°C

Operating Humidity

10 to 90%

Storage Humidity

5 to 90%

General



IP Rating

None

Mount Options

Wall, Ceiling

Dimensions

5.6 x 3.4 x 0.8" / 143 x 86 x 20 mm

Packaging Info



Package Weight

0.73 lb

Box Dimensions (LxWxH)

7.3 x 4.6 x 1.4"



$30.46

Original: $87.03

-65%
TP-LINK EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Access Point

$87.03

$30.46
