TP-LINK EAP650 AX3000 Ceiling Mount Wi-Fi 6 Access Point
 |
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your Wi-Fi signal further and more flexibly to hard-to-wire areas.
|
 |
Education
Due to its reliable, scalable, and secure network solution, TP-Link has been widely acknowledged by global customers in the Education market ranging from infant schools, up to colleges and universities.
|
 |
Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple Wi-Fi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.
|
Specifications
Interface
|

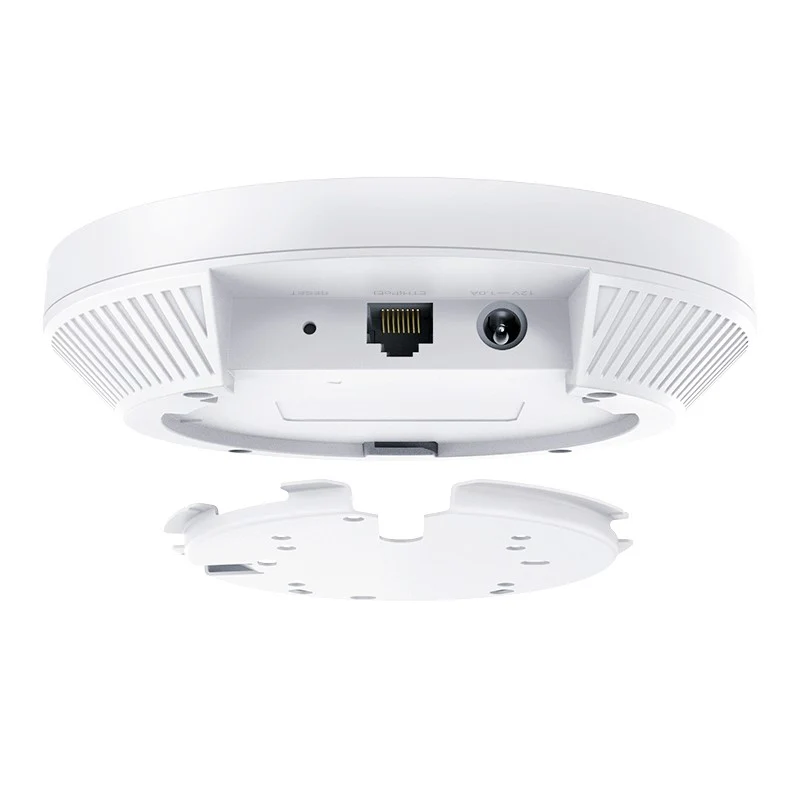

1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
|
Button
|
Reset
|
Power Supply
|
802.3at PoE
|
|
12V DC (Power Adapter included)
|
|
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC)
|
|
48V Passive PoE
|
Power Consumption
|
EU: 13.5 Watts
|
|
US: 14.7 Watts
|
Dimensions ( W x D x H )
|
6.3 × 6.3 × 1.3" (160 × 160 × 33.6 mm)
|
Antenna Type
|
Internal Omni
|
|
2.4 GHz: 2× 4 dBi
|
|
5 GHz: 2× 5 dBi
|
Wireless Standards
|
IEEE 802.11ax/ac/n/g/b/a
|
Frequency
|
2.4 GHz and 5 GHz
|
Wireless Security
|
Captive Portal Authentication
|
|
Access Control
|
|
Wireless Mac Address Filtering
|
|
Wireless Isolation Between Clients
|
|
SSID to VLAN Mapping
|
|
Rogue AP Detection
|
|
802.1X Support
|
|
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
|
Transmission Power
|
CE:
|
|
<20 dBm(2.4 GHz, EIRP)
|
|
<23 dBm(5 GHz, Band1 & Band2, EIRP)
|
|
<30 dBm(5 GHz, Band3, EIRP)
|
|
|
|
FCC:
|
|
<25 dBm (2.4 GHz)
|
|
<25 dBm (5 GHz)
|
Omada App
|
Yes
|
Cloud Access
|
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
|
Email Alerts
|
Yes
|
LED ON/OFF Control
|
Yes
|
Management MAC Access Control
|
Yes
|
SNMP
|
v1, v2c, v3
|
System Logging Local/Remote Syslog
|
Local/Remote Syslog
|
SSH
|
Yes
|
Web-based Management
|
HTTP/HTTPS
|
L3 Management
|
Yes
|
Multi-site Management
|
Yes
|
Management VLAN
|
Yes
|
Zero-Touch Provisioning
|
Yes. Requiring the use of Omada Cloud-Based Controller.
|
Certification
|
CE, FCC, RoHS
|
System Requirements
|
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
|
|
