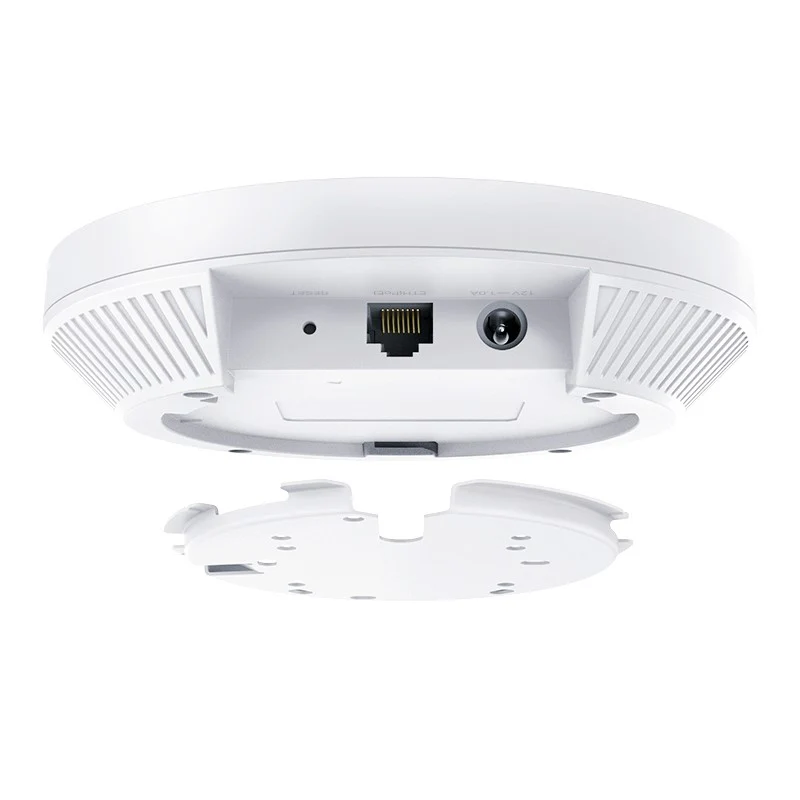

TP-LINK EAP670 AX5400 Ceiling Mount Wi-Fi 6 Access Point

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your Wi-Fi signal further and more flexibly to hard-to-wire areas.

Education

Due to its reliable, scalable, and secure network solution, TP-Link has been widely acknowledged by global customers in the Education market ranging from infant schools, up to colleges and universities.

Always Stay Smooth with Fast Roaming

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Omada Mesh

Enables wireless connectivity between access points for extended range and flexible deployment.

Shopping Mall

Seamless marketing Wi-Fi coverage to boost business.

Office

Stable, seamless, and high-security Wi-Fi coverage. Faster streaming, downloading, video conferencing, and more.

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Interface

1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button

Reset

Power Supply

802.3at PoE

12 V / 1.5 A DC

Dimensions ( W x D x H )

9.6 × 9.6 × 2.5" (243 × 243 × 64 mm)

Antenna Type

Internal Omni

2.4 GHz: 2× 4 dBi

5 GHz: 4× 5 dBi

Mounting

Ceiling /Wall Mounting (Kits included)

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 4804 Mbps

2.4 GHz: Up to 574 Mbps

Wireless Functions

1024-QAM

4× Longer OFDM Symbol

OFDMA

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

MU-MIMO

HE160 (160 MHz Bandwidth)

Seamless Roaming

Omada Mesh

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication§

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, , band1 & band2, EIRP)

<30 dBm(5 GHz, , band3, EIRP)

FCC:

<25 dBm (2.4 GHz)

<28 dBm (5 GHz)

Omada App

Yes

Centralized Management

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Omada Cloud-Based Controller

Cloud Access

Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.
