TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

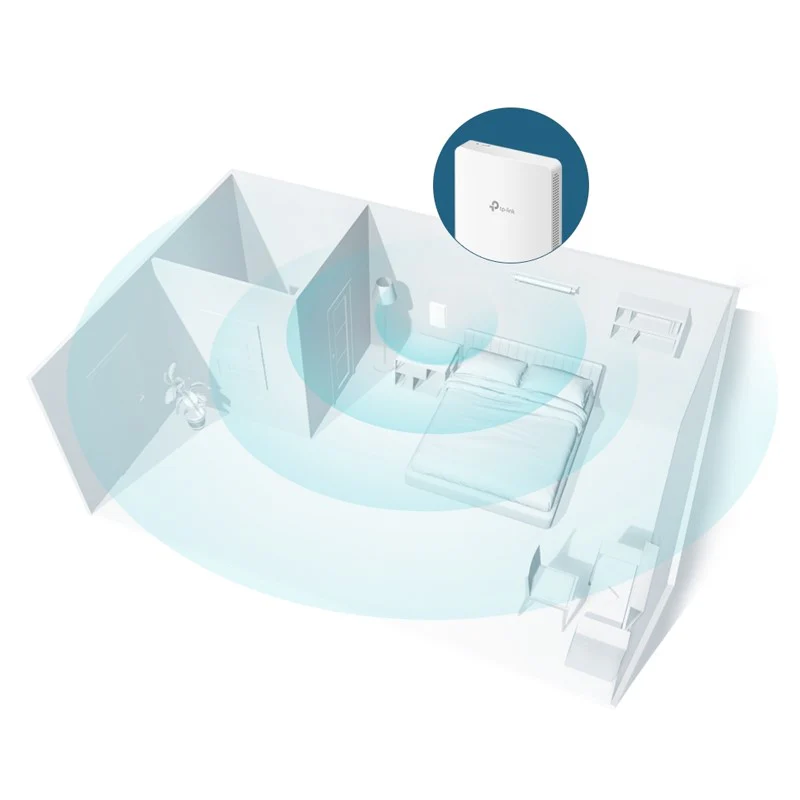

Dedicated Complete, Private Wi-Fi Network in Each Room

An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

Absolute Thinnest, Inconspicuous Design

The thinnest wall plate AP available only 15 mm featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered

With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

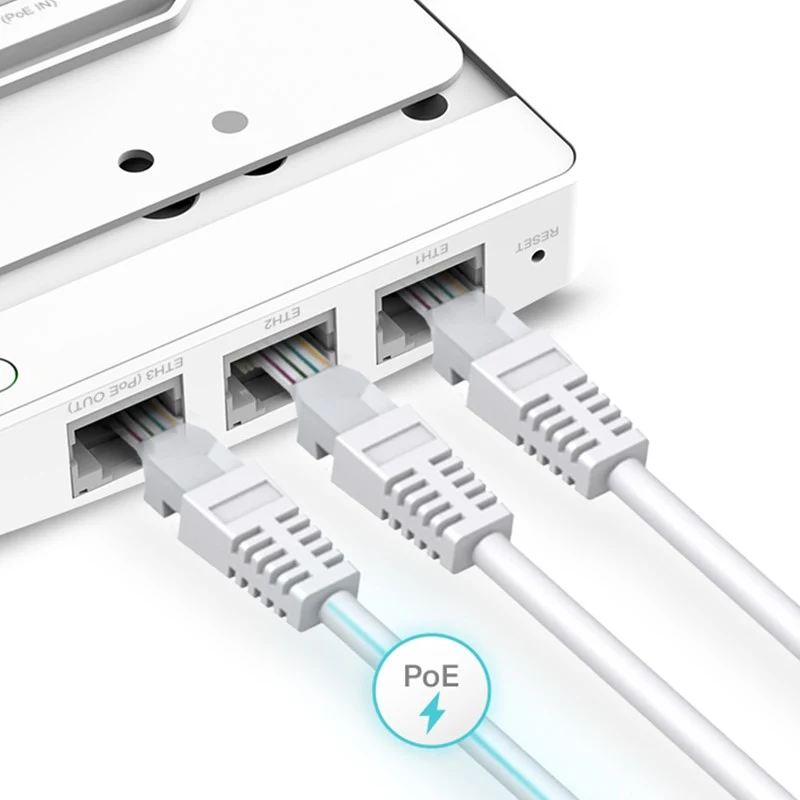

Full Gigabit Ports to Bridge Network

Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Interface

Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE

Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port

Physical Security Lock

Yes

Button

Reset

Power Supply

802.3af/802.3at PoE

Power Consumption

9.8 watts

24.4 watts with 13w PoE output

Dimensions

5.6 × 3.4 × 0.8 in.

143 × 86 × 20 mm

Antenna

2.4 GHz: 2× 4 dBi

5 GHz: 2× 4 dBi

Mounting

Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/b/g/n/ac

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 867 Mbps

2.4 GHz: Up to 300 Mbps

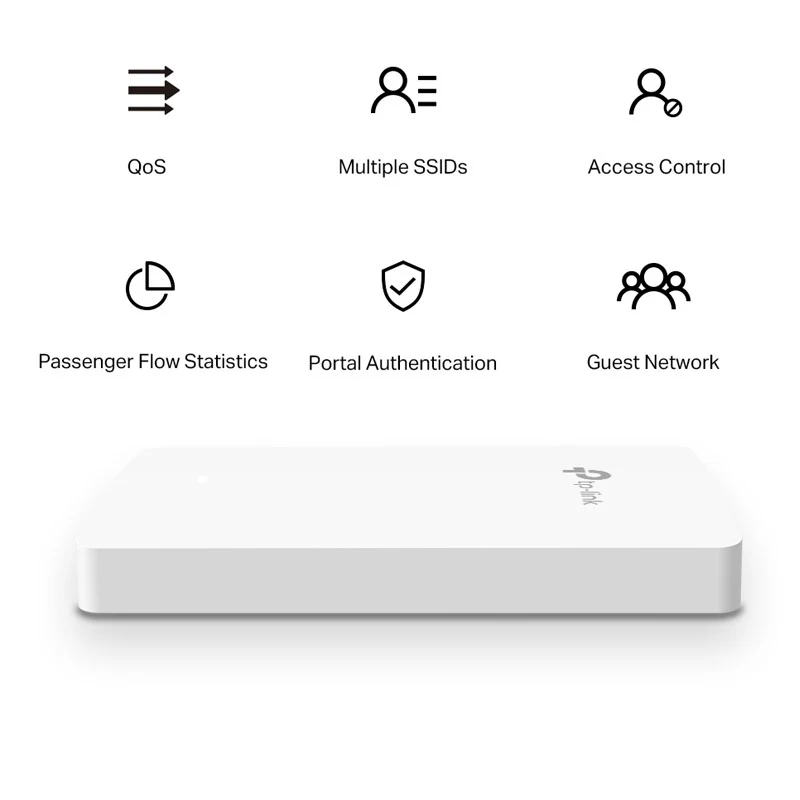

Wireless Functions

16 SSIDs (Up to 8 SSIDs on each band)

Enable/ disable SSID broadcast

Automatic channel assignment

Transmit power control (adjustable in 1 dBm step)

QoS (WMM)

Band steering

Beamforming

Load balance

Rate limit

Scheduled reboot

Wireless scheduled on/off

Wireless Statistics based on SSID, access point, or client

Wireless Security

Captive portal authentication

Access control list

Wireless MAC address filtering

Wireless isolation between clients

SSID to VLAN Mapping

LAN port-based VLAN

Rogue AP detection

802.1X EAP support

64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

Transmission Power

≤21 dBm (2.4 GHz)

≤21 dBm (5 GHz)

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access

Yes

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c

System Logging Local/Remote Syslog

Local/ remote syslog

SSH

Yes

Web-based Management

HTTP/ HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes
