AsRock AMD Radeon RX 6900 XT Phantom Gaming D 16GB OC Graphics Card

AsRock AMD Radeon RX 6900 XT Phantom Gaming D 16GB OC Graphics Card

OC Edition

Great Performance.

Delivers great performance which is more higher than reference cards based on the solid hardware design.

Phantom Gaming 3X Cooling System

For Cool and Silent.

Crafted for the best balance between the thermal efficiency and silence by all the details.

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

Air Deflecting Fin

Guide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

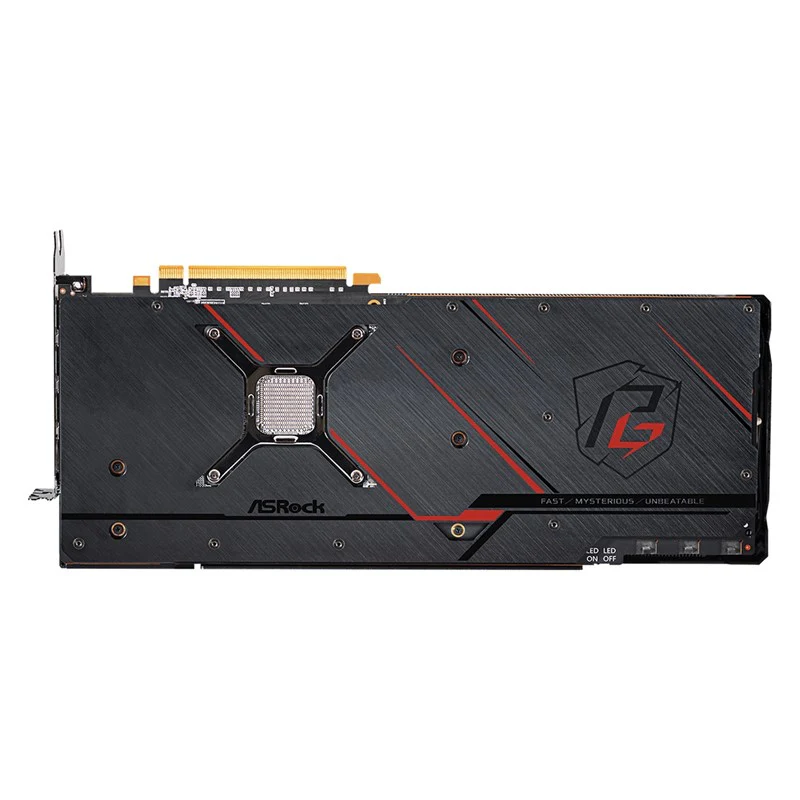

Stylish Metal Backplate

Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual.

It also helps to enhance cooling with the premium thermal pads equipped backside.

Graphics Engine

AMD Radeon RX 6900 XT Graphics

Bus Standard

PCI Express 4.0 x16

DirectX

12 Ultimate

OpenGL

4.6

Memory

GDDR6 16GB

Engine Clock

Boost Clock: Up to 2340 MHz

Game Clock: Up to 2105 MHz

Base Clock: 1925 MHz

Stream Processors

5120

Compute Units

80

Memory Clock

 16 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution: 7680 x 4320

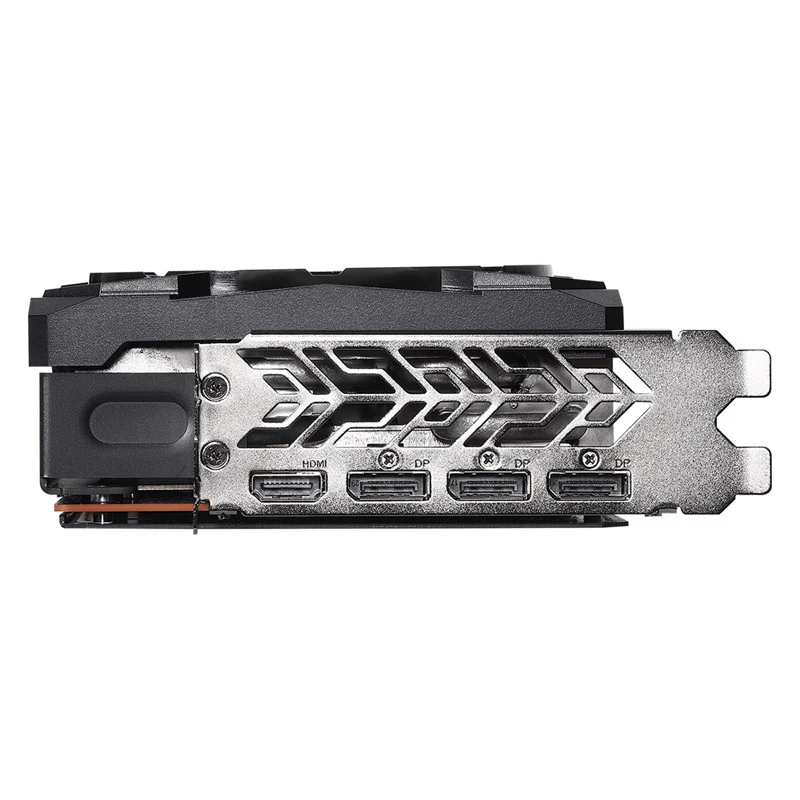

Interface

1 x HDMI 2.1 VRR

3 x DisplayPort 1.4 with DSC

Recommended PSU

900W

Power Connector

3 x 8-pin

Dimensions

330 x 140 x 56 mm, 2.8-slot

Weight

1784 g
