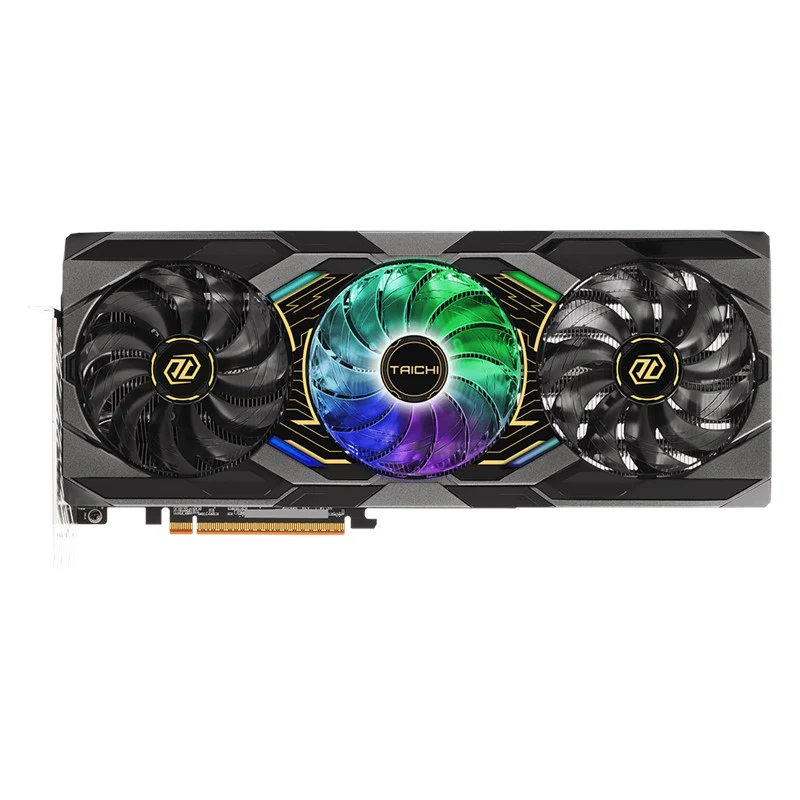

ASRock AMD Radeon RX 9070 XT Taichi 16GB OC GDDR6 Gaming Graphics Card

ASRock AMD Radeon RX 9070 XT Taichi 16GB OC GDDR6 Gaming Graphics Card

Reverse Spin

The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.

Taichi 3X Cooling System

Crafted for the best balance between the thermal efficiency and silence by all the details improved.

Striped Ring Fan

Designed For Enhanced Airflow

ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

0dB Silent Cooling

Spin For Cooling, Stop For Silence

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Air Deflecting Fin

Guide Airflow to Go Through Regularly & Quickly

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe

Consolidated to Maximize the Contact

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base

Maximize GPU Contact Area

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding

Improve Heat Dissipation

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Precise Screw Torque

Optimized Mounting Pressure

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Graphics Engine

AMD Radeon RX 9070 XT

Bus Standard

PCI Express5.0 x16

DirectX

12 Ultimate

OpenGL

4.6

Memory

16 GB GDDR6

Engine Clock

Boost Clock: Up to 3100 MHz

Game Clock: 2570 MHz

Stream Processors

4096

Memory Speed

20 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution: 7680 x 4320

Interface

1 x HDMI 2.1b

3 x DisplayPort 2.1a

HDCP

Yes

Multi-view

4

Recommended PSU

850W

Power Connector

1 x 12V-2x6-pin

Accessories

1 x Quick Installation Guide

1 x 16Pin to 3x8 Pin Power Cable

1 x Graphics Card Stand

Dimensions

330 x 140 x 61mm, 3-slot

Net Weight

1554 g
