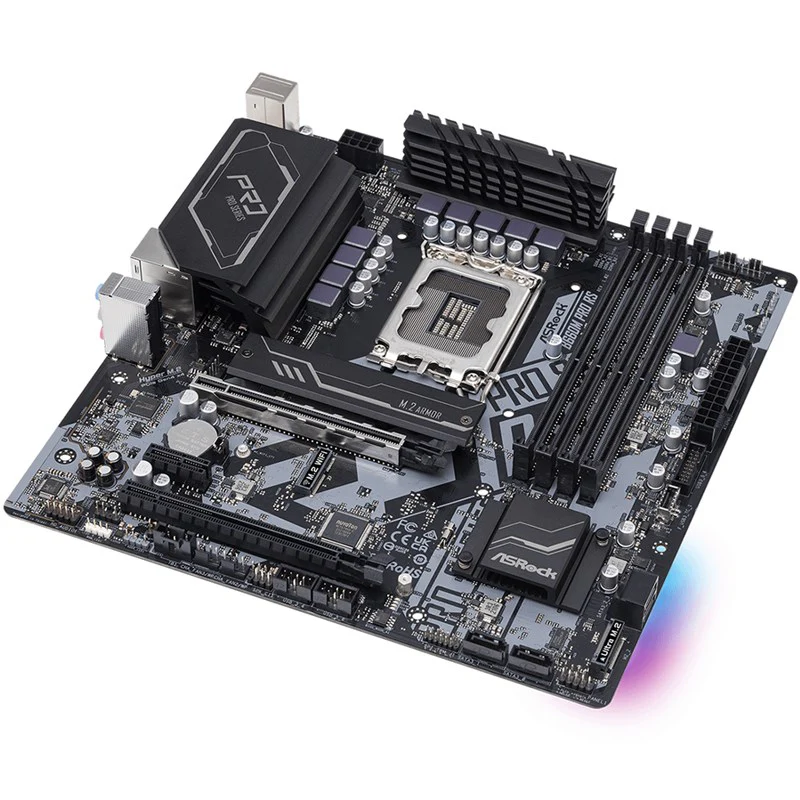

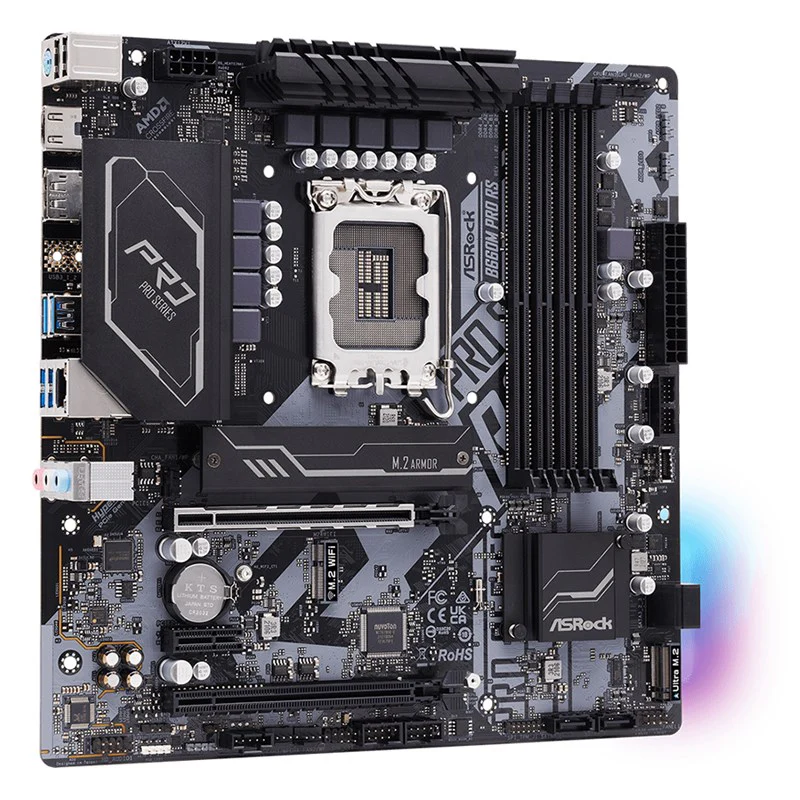

Unique Feature
|
ASRock Super Alloy
|
|
- Premium Power Choke
|
|
- Sapphire Black PCB
|
|
- High Density Glass Fabric PCB
|
|
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC)
|
|
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
|
|
ASRock Live Update & APP Shop
|
CPU
|
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
|
|
- Digi Power design
|
|
- 8 Power Phase design
|
|
- Supports Intel® Hybrid Technology
|
|
- Supports Intel® Turbo Boost Max 3.0 Technology
|
Chipset
|
- Intel® B660
|
Memory
|
- Dual Channel DDR4 Memory Technology
|
|
- 4 x DDR4 DIMM Slots
|
|
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
|
|
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
|
|
- Max. capacity of system memory: 128GB
|
|
- Supports Intel® Extreme Memory Profile (XMP) 2.0
|
|
*Supports DDR4 3200 natively.
|
BIOS
|
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
|
|
- ACPI 6.0 Compliant wake up events
|
|
- SMBIOS 2.7 Support
|
|
- CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
|
Graphics
|
- Intel® Xe Graphics Architecture (Gen 12)
|
|
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
|
|
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
|
|
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
|
|
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
|
|
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
Audio
|
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
|
- Supports Surge Protection
|
|
- Nahimic Audio
|
LAN
|
- Gigabit LAN 10/100/1000 Mb/s
|
|
- Giga PHY Intel® I219V
|
|
- Supports Wake-On-LAN
|
|
- Supports Lightning/ESD Protection
|
|
- Supports Energy Efficient Ethernet 802.3az
|
|
- Supports UEFI PXE
|
Slots
|
|
CPU:
|
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
|
Chipset:
|
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
|
|
- 1 x PCIe 3.0 x1 Slot (PCIE2)*
|
|
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
|
|
- Supports AMD CrossFire™
|
|
*Supports NVMe SSD as boot disks
|
Storage
|
|
CPU:
|
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
Chipset:
|
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode*
|
|
- 4 x SATA3 6.0 Gb/s Connectors**
|
|
*Supports Intel® Optane™ Memory H Series (M2_2 only)
|
|
Supports Intel® Volume Management Device (VMD)
|
|
Supports NVMe SSD as boot disks
|
|
Supports ASRock U.2 Kit
|
|
** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
|
RAID
|
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
Connector
|
- 1 x SPI TPM Header
|
|
- 1 x Chassis Intrusion and Speaker Header
|
|
- 1 x RGB LED Header
|
|
* Supports in total up to 12V/3A, 36W LED Strip
|
|
- 3 x Addressable LED Headers
|
|
* Support in total up to 5V/3A, 15W LED Strip
|
|
- 1 x CPU Fan Connector (4-pin)
|
|
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
|
|
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
|
|
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
|
|
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
|
|
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
|
|
* CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
|
|
- 1 x 24 pin ATX Power Connector
|
|
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
|
|
- 1 x Front Panel Audio Connector
|
|
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
|
|
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
|
|
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
|
|
- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
|

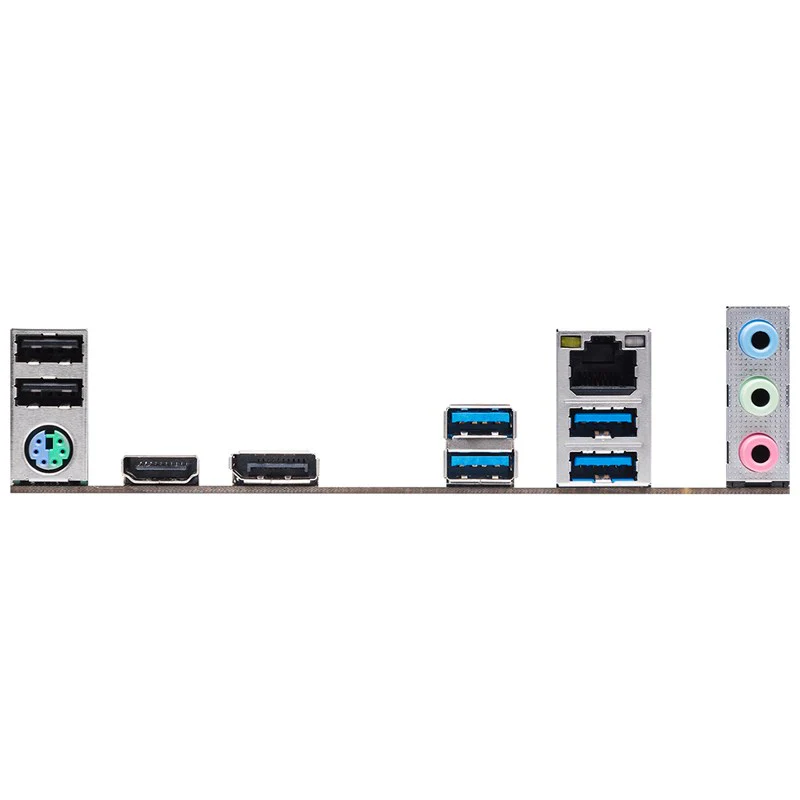

Rear Panel I/O
|
- 3 x Antenna Mounting Points
|
|
- 1 x PS/2 Mouse/Keyboard Port
|
|
- 1 x HDMI Port
|
|
- 1 x DisplayPort 1.4
|
|
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
|
|
- 2 x USB 2.0 Ports (Supports ESD Protection)
|
|
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
|
|
- HD Audio Jacks: Line in / Front Speaker / Microphone
|
Software and UEFI
|
|
Software
|
- ASRock Motherboard Utility (A-Tuning)
|
|
- ASRock Polychrome SYNC
|
|
- ASRock XFast LAN
|
UEFI
|
- ASRock EZ Mode
|
|
- ASRock Full HD UEFI
|
|
- ASRock My Favorites in UEFI
|
|
- ASRock Instant Flash
|
|
- ASRock Easy RAID Installer
|
|
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
Support CD
|
- Drivers, Utilities, AntiVirus Software (Trial Version)
|
Accessories
|
- Quick Installation Guide, Support CD, I/O Shield
|
|
- 2 x SATA Data Cables
|
|
- 3 x Screws for M.2 Sockets
|
|
- 1 x Standoff for M.2 Socket
|
Hardware Monitor
|
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
|
|
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
|
|
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
|
|
- CASE OPEN detection
|
|
- Voltage monitoring: CPU Vcore, +1.05V_PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
|
Form Factor
|
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
|
|
- Solid Capacitor design
|
OS
|
- Microsoft Windows® 10 64-bit / 11 64-bit
|
Certifications
|
- FCC, CE
|
|
- ErP/EuP ready (ErP/EuP ready power supply is required)
|
