Unique Feature
|
Superb Productivity
|
|
- PCIe Gen5 (Graphics, M.2)
|
|
- Dual Channel DDR5
|
|
Rock-Solid Durability
|
|
- 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
|
|
- Pre-Installed I/O Shield
|
|
Ultrafast Connectivity
|
|
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
|
|
EZ Update
|
|
- BIOS Flashback Button
|
|
- ASRock Auto Driver Installer
|
|
EZ Troubleshooter
|
|
- ASRock Post Status Checker
|
CPU
|
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
|
|
*The availability of expansion slots may vary by CPU.
|
Chipset
|
- AMD B850
|
Memory
|
- Dual Channel DDR5 Memory Technology
|
|
- 4 x DDR5 DIMM Slots
|
|
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
|
|
- Max. capacity of system memory: 256GB
|
|
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
|
BIOS
|
- 256Mb AMI UEFI Legal BIOS with GUI support
|
Graphics
|
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
|
|
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
|
|
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
|
Audio
|
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
|
- Nahimic Audio
|
LAN
|
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
- Dragon RTL8125BG
|
|
- Supports Dragon 2.5G LAN Software
|
|
- Smart Auto Adjust Bandwidth Control
|
|
- Visual User Friendly UI
|
|
- Visual Network Usage Statistics
|
|
- Optimized Default Setting for Game, Browser, and Streaming Modes
|
|
- User Customized Priority Control
|
Wireless LAN
|
- 802.11axe Wi-Fi 6E Module
|
|
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
|
|
- Supports Dual-Band 2x2 with extended 6GHz band* support
|
|
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
|
|
- Supports Bluetooth 5.2
|
|
- Supports MU-MIMO
|
|
*The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
|
|
A 6GHz compatible router is required for 6E functionality.
|
Slots
|
CPU:
|
|
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
|
|
- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
|
|
Chipset:
|
|
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
|
|
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
|
|
*PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
|
|
If M2_3 is occupied, PCIE2 will be disabled.
|
|
Supports NVMe SSD as boot disks
|
Storage
|
CPU:
|
|
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
|
|
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
Chipset:
|
|
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
- 4 x SATA3 6.0 Gb/s Connectors
|
|
*Supports NVMe SSD as boot disks
|
|
M2_1 is the first priority for M.2 installation.
|
|
M2_1 will run at Gen5x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
|
|
If M2_3 is occupied, PCIE2 will be disabled.
|
|
RAID
|
|
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
|
|
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
|
|
* Requires additional M.2 NVMe expansion cards to support RAID 10
|
USB
|
CPU:
|
|
- 1 x USB 3.2 Gen2 Type-C (Rear)
|
|
- 1 x USB 3.2 Gen2 Type-A (Rear)
|
|
Chipset:
|
|
- 1 x USB 3.2 Gen1 Type-C (Front)
|
|
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
|
|
- 8 x USB 2.0 (4 Rear, 4 Front)
|
|
* All USB ports support ESD Protection
|
Connector
|
- 1 x SPI TPM Header
|
|
- 1 x Power LED and Speaker Header
|
|
- 1 x RGB LED Header*
|
|
- 3 x Addressable LED Headers**
|
|
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
|
|
- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
|
|
- 1 x 24 pin ATX Power Connector
|
|
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
|
|
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|
|
- 1 x Front Panel Audio Connector
|
|
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
|
|
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
|
|
- 1 x Front Panel Type C USB 3.2 Gen1 Header
|
|
* Supports in total up to 12V/3A, 36W LED Strip
|
|
** Support in total up to 5V/3A, 15W LED Strip
|
|
*** CPU_FAN1 supports the fan power up to 1A (12W).
|
|
CPU_FAN2 and CHA_FAN1~3 support the fan power up to 3A (36W).
|
|
CPU_FAN2 and CHA_FAN1~3 can auto detect if 3-pin or 4-pin fan is in use.
|

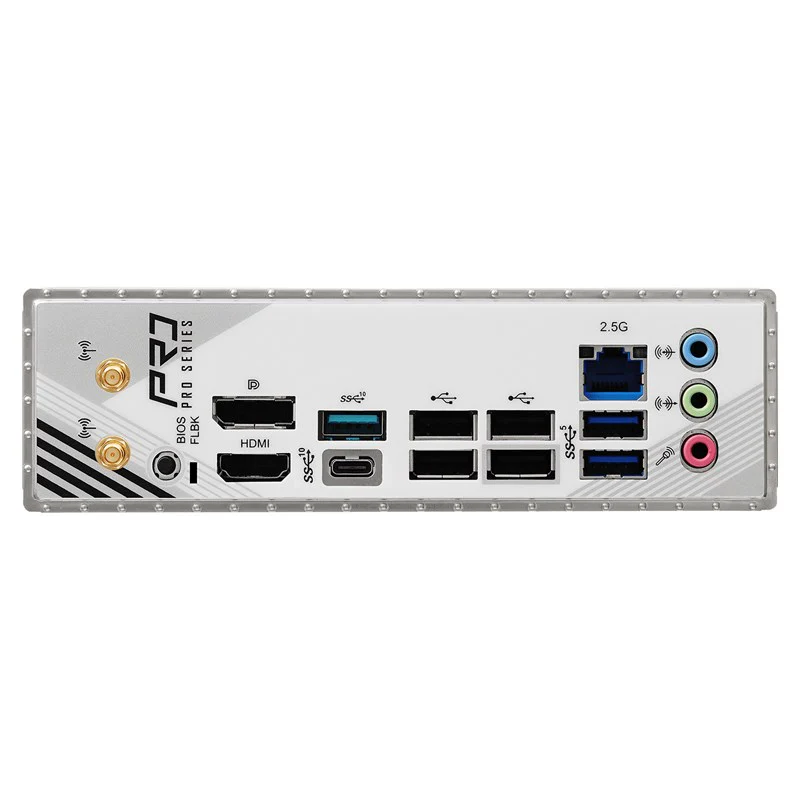

Rear Panel I/O
|
- 2 x Antenna Ports
|
|
- 1 x HDMI Port
|
|
- 1 x DisplayPort 1.4
|
|
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
|
|
- 1 x USB 3.2 Gen2 Type-C Port
|
|
- 2 x USB 3.2 Gen1 Ports
|
|
- 4 x USB 2.0 Ports
|
|
- 1 x RJ-45 LAN Port
|
|
- 1 x BIOS Flashback Button
|
|
- HD Audio Jacks: Line in / Front Speaker / Microphone
|
Software and UEFI
|
Software
|
|
- ASRock Motherboard Utility (A-Tuning)
|
|
- ASRock Dragon 2.5G LAN Software
|
|
- ASRock Polychrome SYNC*
|
|
UEFI
|
|
- ASRock EZ Mode
|
|
- ASRock Full HD UEFI
|
|
- ASRock Auto Driver Installer
|
|
- ASRock Instant Flash
|
|
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
Accessories
|
- 2 x SATA Data Cables
|
|
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
|
Form Factor
|
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
|
OS
|
- Microsoft Windows® 10 64-bit / 11 64-bit
|
Certifications
|
- FCC, CE
|
|
- ErP/EuP ready (ErP/EuP ready power supply is required)
|
