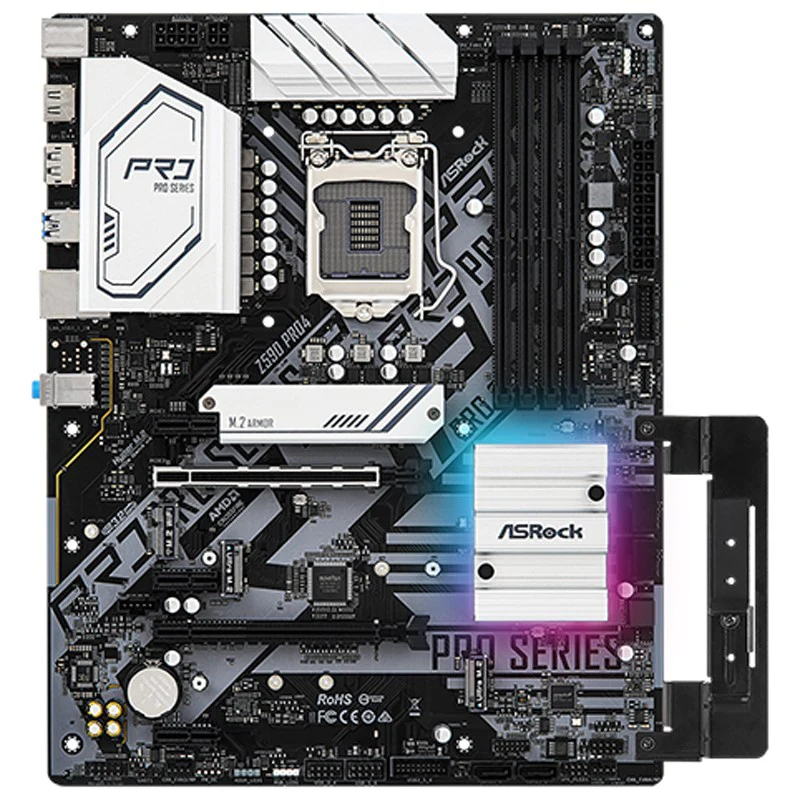

ASRock USB 3.2 Gen2
|
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
|
|
|
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
|
|
ASRock Super Alloy
|
- Premium 50A Power Choke
|
|
|
- 50A Dr.MOS
|
|
|
- Sapphire Black PCB
|
|
|
- High Density Glass Fabric PCB
|
|
|
2.5G LAN
|
|
|
ASRock Steel Slot
|
|
|
ASRock Full Coverage M.2 Heatsink
|
|
|
ASRock Hyper M.2 (PCIe Gen4x4)
|
|
|
ASRock POST Status Checker (PSC)
|
|
|
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
|
|
|
ASRock Live Update & APP Shop
|
|
CPU
|
- Supports 10th Gen IntelĀ® Coreā¢ Processors and 11th Gen IntelĀ® Coreā¢ Processors (LGA1200)
|
|
|
- Digi Power design
|
|
|
- 14 Power Phase design
|
|
|
- Supports IntelĀ® Turbo Boost Max 3.0 Technology
|
|
|
- Supports IntelĀ® K-Series unlocked CPUs
|
|
Chipset
|
- IntelĀ® Z590
|
|
Memory
|
- Dual Channel DDR4 Memory Technology
|
|
|
- 4 x DDR4 DIMM Slots
|
|
|
- 11th Gen IntelĀ® Coreā¢ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
|
|
|
- 10th Gen IntelĀ® Coreā¢ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
|
|
|
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
|
|
|
- Max. capacity of system memory: 128GB**
|
|
|
- Supports IntelĀ® Extreme Memory Profile (XMP) 2.0
|
|
|
*11th Gen IntelĀ® Coreā¢ (i9/i7/i5) support DDR4 3200 natively; Coreā¢ (i3), PentiumĀ® and CeleronĀ® support DDR4 2666 natively.
|
|
|
10th Gen IntelĀ® Coreā¢ (i9/i7) support DDR4 2933 natively; Coreā¢ (i5/i3), PentiumĀ® and CeleronĀ® support DDR4 2666 natively.
|
|
|
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under WindowsĀ® 32-bit OS. For WindowsĀ® 64-bit OS with 64-bit CPU, there is no such limitation.
|
|
BIOS
|
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
|
|
|
- ACPI 6.0 Compliant wake up events
|
|
|
- SMBIOS 2.7 Support
|
|
|
- CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST, VCCSA Voltage Multi-adjustment
|
|
Graphics
|
- 11th Gen IntelĀ® Coreā¢ Processors support IntelĀ® Xe Graphics Architecture (Gen 12). 10th Gen IntelĀ® Coreā¢ Processors support Gen 9 Graphics
|
|
|
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
|
|
|
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen IntelĀ® Coreā¢ Processors
|
|
|
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen IntelĀ® Coreā¢ Processors
|
|
|
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
|
|
|
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
|
|
|
- Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen IntelĀ® Coreā¢ Processors)
|
|
|
*IntelĀ® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
|
|
Graphics specifications may vary between CPU types.
|
|
Audio
|
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
|
|
- Supports Surge Protection
|
|
|
- Nahimic Audio
|
|
LAN
|
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
|
- Dragon RTL8125BG
|
|
|
- Supports Dragon 2.5G LAN Software
|
|
|
- Smart Auto Adjust Bandwidth Control
|
|
|
- Visual User Friendly UI
|
|
|
- Visual Network Usage Statistics
|
|
|
- Optimized Default Setting for Game, Browser, and Streaming Modes
|
|
|
- User Customized Priority Control
|
|
|
- Supports Wake-On-LAN
|
|
|
- Supports Lightning/ESD Protection
|
|
|
- Supports Energy Efficient Ethernet 802.3az
|
|
|
- Supports PXE
|
|
Slots
|
|
|
11th Gen IntelĀ® Coreā¢ Processors
|
- 2 x PCI Express x16 Slots (PCIE2/PCIE4: single at Gen4x16 (PCIE2); dual at Gen4x16 (PCIE2) / Gen3x4 (PCIE4))*
|
|
10th Gen IntelĀ® Coreā¢ Processors
|
- 2 x PCI Express x16 Slots (PCIE2/PCIE4: single at Gen3x16 (PCIE2); dual at Gen3x16 (PCIE2) / Gen3x4 (PCIE4))*
|
|
|
- 3 x PCI Express 3.0 x1 Slots
|
|
|
- Supports AMD Quad CrossFireXā¢ and CrossFireXā¢
|
|
|
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and IntelĀ® CNVi (Integrated WiFi/BT)
|
|
|
- 15Ī¼ Gold Contact in VGA PCIe Slot (PCIE2)
|
|
|
*Supports NVMe SSD as boot disks
|
|
Storage
|
- 6 x SATA3 6.0 Gb/s Connectors*
|
|
|
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen IntelĀ® Coreā¢ processors only)**
|
|
|
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
|
|
|
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
|
|
|
*If M2_2 is occupied by a SATA-type M.2 device, SATA3_2 will be disabled.
|
|
|
If M2_3 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
|
|
|
If M2_3 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.
|
|
|
**Supports IntelĀ® Optaneā¢ Technology
|
|
|
Supports NVMe SSD as boot disks
|
|
|
Supports ASRock U.2 Kit
|
|
RAID
|
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
|
|
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices*
|
|
|
*RAID function for PCIe mode SSD in M2_1 is only available with IntelĀ® SSD installed.
|
|
Connector
|
- 1 x SPI TPM Header
|
|
|
- 1 x Power LED and Speaker Header
|
|
|
- 2 x RGB LED Headers*
|
|
|
- 2 x Addressable LED Headers**
|
|
|
- 1 x CPU Fan Connector (4-pin)***
|
|
|
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
|
|
|
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
|
|
|
- 1 x 24 pin ATX Power Connector
|
|
|
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
|
|
|
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
|
|
|
- 1 x Front Panel Audio Connector
|
|
|
- 1 x Thunderboltā¢ AIC Connector (5-pin) (Supports ASRock Thunderboltā¢ 4 AIC Card)
|
|
|
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
|
|
|
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
|
|
|
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
|
|
|
*Support in total up to 12V/3A, 36W LED Strip
|
|
|
**Support in total up to 5V/3A, 15W LED Strip
|
|
|
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
|
|
|
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
|
|
|
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
|
|
|
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
|
|
Rear Panel I/O
|
- 3 x Antenna Mounting Points
|
|
|
- 1 x PS/2 Mouse/Keyboard Port
|
|
|
- 1 x HDMI Port
|
|
|
- 1 x DisplayPort 1.4
|
|
|
- 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
|
|
|
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
|
|
|
- 2 x USB 2.0 Ports (Supports ESD Protection)
|
|
|
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
|
|
|
- HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
Software
|
- ASRock Motherboard Utility (A-Tuning)
|
|
|
- ASRock Dragon 2.5G LAN Software
|
|
|
- ASRock Polychrome SYNC*
|
|
UEFI
|
- ASRock EZ Mode
|
|
|
- ASRock Full HD UEFI
|
|
|
- ASRock My Favorites in UEFI
|
|
|
- ASRock Instant Flash
|
|
|
- ASRock Internet Flash
|
|
|
- ASRock Easy RAID Installer
|
|
|
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
|
Support CD
|
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
|
|
Accessories
|
- Quick Installation Guide, Support CD, I/O Shield
|
|
|
- 2 x SATA Data Cables
|
|
|
- 4 x Screws for M.2 Sockets
|
|
|
- 1 x Standoff for M.2 Socket
|
|
|
- 1 x Graphics Card Holder
|
|
Hardware Monitor
|
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
|
|
|
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
|
|
|
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
|
|
|
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN AUX, VCCSA, VCCPLL, VCCIO
|
|
Form Factor
|
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
|
|
|
- Solid Capacitor design
|
|
OS
|
- MicrosoftĀ® WindowsĀ® 10 64-bit / 11 64-bit
|
|
Certifications
|
- FCC, CE
|
|
|
- ErP/EuP ready (ErP/EuP ready power supply is required)
|
