Unique Feature
|
|
Superb Productivity
|
- Dual Channel DDR5
|
Rock-Solid Durability
|
- 5+1+1 Power Phase
|
|
- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
|
Ultrafast Connectivity
|
- 2.5G LAN
|
EZ Update
|
- ASRock Auto Driver Installer
|
CPU
|
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
|
|
- Supports Intel® Hybrid Technology
|
|
- Supports Intel® Turbo Boost Max 3.0 Technology
|
|
- Supports Intel® Thermal Velocity Boost (TVB)
|
|
- Supports Intel® Adaptive Boost Technology (ABT)
|
Chipset
|
- Intel® B760
|
Memory
|
- Dual Channel DDR5 Memory Technology
|
|
- 2 x DDR5 DIMM Slots
|
|
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
|
|
- Max. capacity of system memory: 96GB
|
|
- Supports Intel® Extreme Memory Profile (XMP) 3.0
|
|
*1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.
|
|
1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively.
|
BIOS
|
- 128Mb AMI UEFI Legal BIOS with GUI support
|
Graphics
|
- Intel® Xe Graphics Architecture (Gen 12)
|
|
- 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
|
|
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
Audio
|
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
|
LAN
|
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
- Dragon RTL8125BG
|
|
- Supports Dragon 2.5G LAN Software
|
|
- Smart Auto Adjust Bandwidth Control
|
|
- Visual User Friendly UI
|
|
- Visual Network Usage Statistics
|
|
- Optimized Default Setting for Game, Browser, and Streaming Modes
|
|
- User Customized Priority Control
|
Slots
|
|
CPU:
|
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
|
Chipset:
|
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
|
|
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
|
|
*Supports NVMe SSD as boot disks
|
Storage
|
|
Chipset:
|
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
|
|
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes*
|
|
- 4 x SATA3 6.0 Gb/s Connectors
|
|
*Supports Intel® Volume Management Device (VMD)
|
|
Supports NVMe SSD as boot disks
|
RAID
|
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
|
USB
|
- 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
|
|
- 6 x USB 2.0 (2 Rear, 4 Front)
|
|
*All USB ports support ESD Protection
|
Connector
|
- 1 x SPI TPM Header
|
|
- 1 x Chassis Intrusion and Speaker Header
|
|
- 1 x RGB LED Header*
|
|
- 3 x Addressable LED Headers**
|
|
- 1 x CPU Fan Connector (4-pin)***
|
|
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
|
|
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
|
|
- 1 x 24 pin ATX Power Connector
|
|
- 1 x 8 pin 12V Power Connector
|
|
- 1 x Front Panel Audio Connector
|
|
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
|
|
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
|
|
*Supports in total up to 12V/3A, 36W LED Strip
|
|
**Support in total up to 5V/3A, 15W LED Strip
|
|
***CPU_FAN1 supports the fan power up to 1A (12W).
|
|
****CPU_FAN2/WP supports the fan power up to 2A (24W).
|
|
*****CHA_FAN1~2/WP support the fan power up to 2A (24W).
|
|
CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.
|

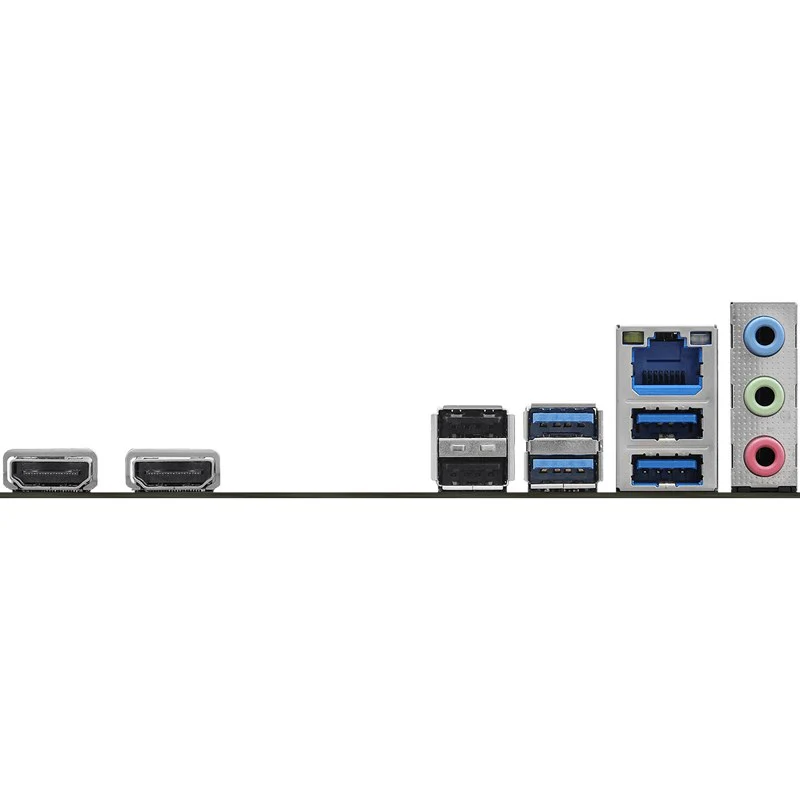

Rear Panel I/O
|
- 2 x Antenna Mounting Points
|
|
- 2 x HDMI Ports
|
|
- 4 x USB 3.2 Gen1 Type-A Ports
|
|
- 2 x USB 2.0 Ports
|
|
- 1 x RJ-45 LAN Port
|
|
- HD Audio Jacks: Line in / Front Speaker / Microphone
|
Software and UEFI
|
|
Software
|
- ASRock Motherboard Utility (A-Tuning)
|
|
- ASRock Dragon 2.5G LAN Software
|
|
- ASRock Polychrome SYNC*
|
UEFI
|
- ASRock EZ Mode
|
|
- ASRock Full HD UEFI
|
|
- ASRock My Favorites in UEFI
|
|
- ASRock Auto Driver Installer
|
|
- ASRock Instant Flash
|
|
- ASRock Easy RAID Installer
|
|
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
Accessories
|
- 1 x User Manual
|
|
- 1 x I/O Shield
|
|
- 2 x SATA Data Cables
|
|
- 3 x Screws for M.2 Sockets
|
Form Factor
|
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
|
OS
|
- Microsoft Windows® 10 64-bit / 11 64-bit
|
Certifications
|
- FCC, CE
|
|
- ErP/EuP ready (ErP/EuP ready power supply is required)
|
