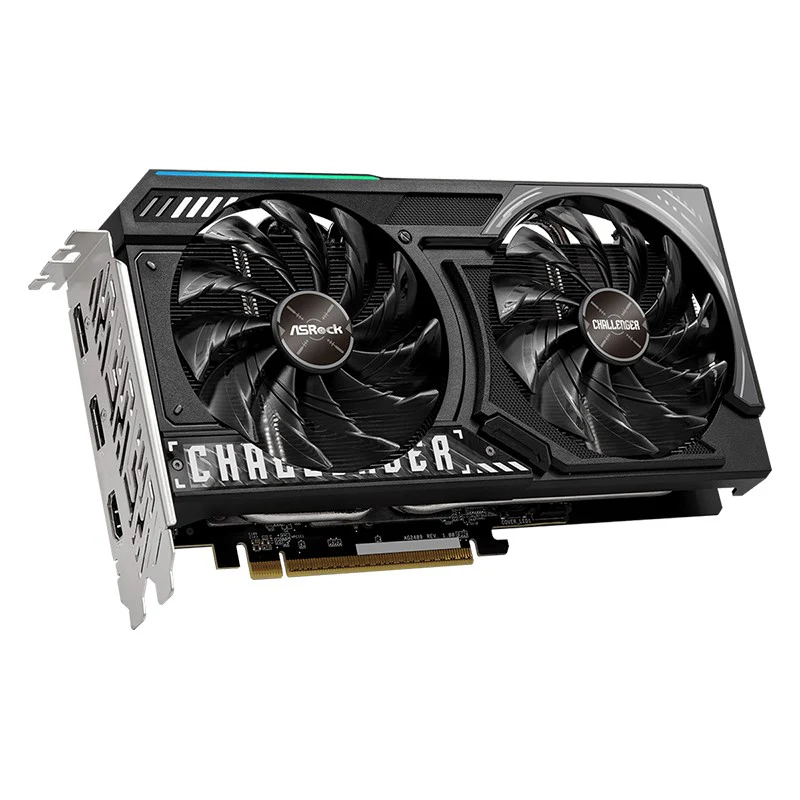

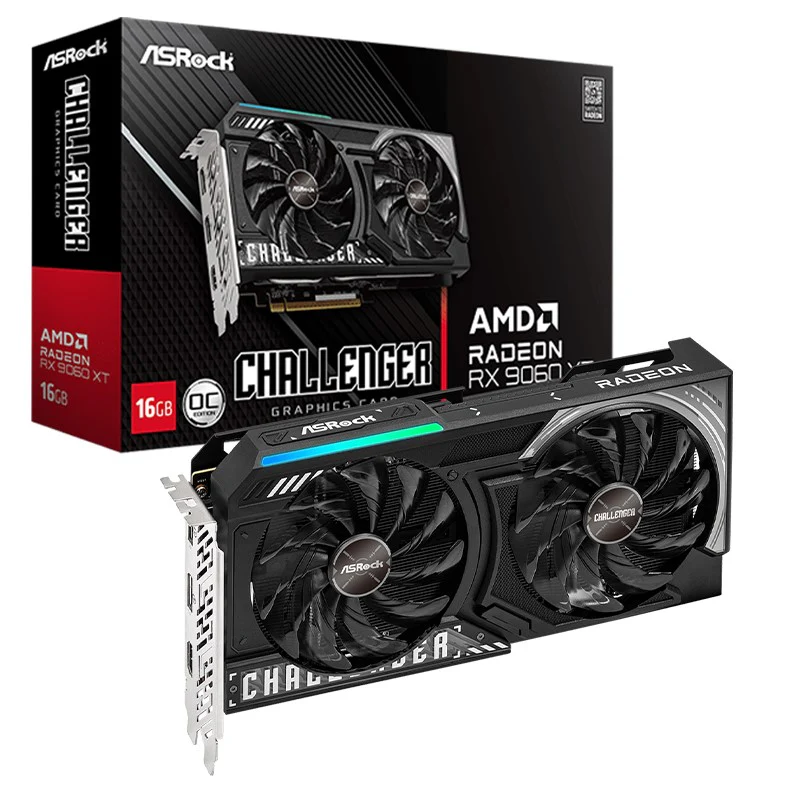

ASRock Radeon RX 9060 XT Challenger 16GB GDDR6 Gaming Graphics Card

ASRock Radeon RX 9060 XT Challenger 16GB GDDR6 Gaming Graphics Card

Optimized Cooling Efficiency.

Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.

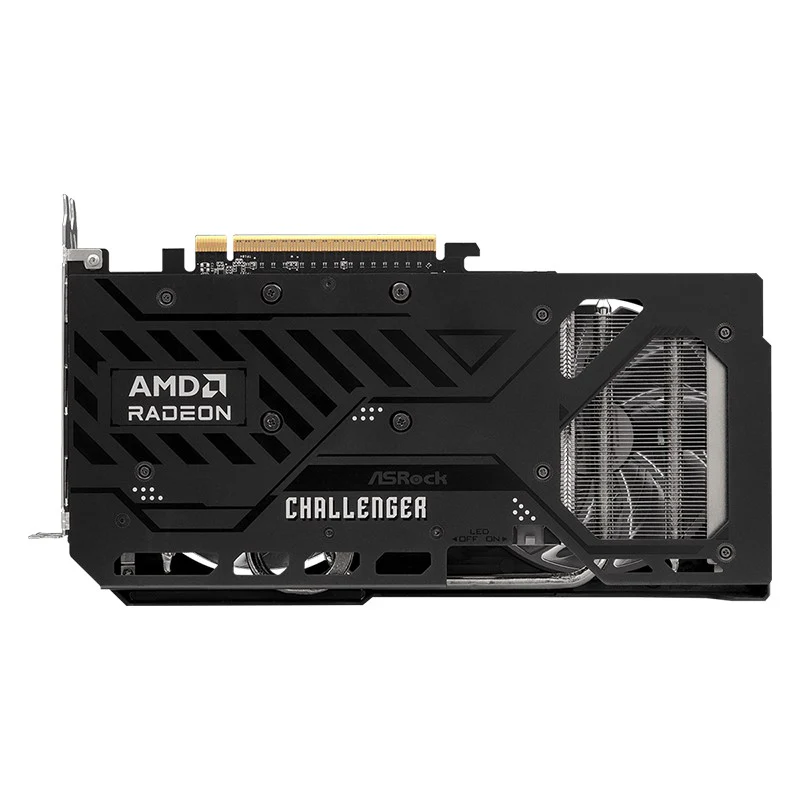

Stylish Metal Backplate

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

More Decoration. More Beauty.

LED indicator embellished the graphics card to make it more beautiful.

Switch on/off as you want.

You can switch LED on or off depends on the scenarios or your need.

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

High-quality Thermal Paste

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Graphics Engine

AMD Radeon RX 9060 XT

Bus Standard

PCI Express 5.0 x16

DirectX

12 Ultimate

OpenGL

4.6

Memory

GDDR6 16 GB

Engine Clock

Boost Clock: 3290 MHz
Game Clock: 2700 MHz

Stream Processors

2048

Compute Units

32

Memory Speed

20 Gbps

Memory Interface

128-bit

Resolution

Digital Max: 7680x4320

Interface

1 x HDMI 2.1b
2 x DisplayPort 2.1a

HDCP

Yes

Multi-view

3

Recommended PSU

550 W

Power Connector

1 x 8-pin

Accessories

1 x Quick Installation Guide

Dimensions

249 x 132 x 41mm

Net Weight

645 g
