Specifications:
CPU Socket
|
Intel® Socket LGA1700
|
Chipset
|
Intel® Z790
|
Memory
|
4 x DIMM slots, max. 192GB, DDR5 8000+(OC)
|
Memory Architecture
|
Dual channel
|
Memory Support
|
Intel® Extreme Memory Profile (XMP), DIMM Flex, OptiMem II, ASUS Enhanced Memory Profile II (AEMP II)
|
Graphics
|
1 x DisplayPort, 1 x HDMI™ port
|
Graphics Support
|
Supports max. 8K@60Hz (DisplayPort 1.4), 4K@60Hz (HDMI 2.1)
|
Expansion Slots (CPU)
|
1 x PCIe 5.0 x16
|
Expansion Slots (Chipset)
|
1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1
|
Storage
|
5 x M.2 slots, 4 x SATA 6Gb/s ports
|
M.2 Slots
|
M.2_1 (Key M, PCIe 4.0 x4), M.2_2, M.2_3, M.2_4 (Key M, PCIe 4.0 x4), M.2_5 (Key M, PCIe 4.0 x4 & SATA modes)
|
SATA Ports
|
4 x SATA 6Gb/s ports
|
Storage Support
|
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
|
Ethernet
|
1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
|
Wireless & Bluetooth
|
Intel® Wi-Fi 7 (802.11be), 2x2 Wi-Fi, Bluetooth® v5.4
|
USB Ports (Rear)
|
1 x USB 20Gbps (Type-C), 3 x USB 10Gbps, 4 x USB 5Gbps, 4 x USB 2.0
|
USB Ports (Front)
|
1 x USB 20Gbps (Type-C with PD Fast-charge), 1 x USB 5Gbps header, 2 x USB 2.0 headers
|
Audio
|
ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080
|
Audio Features
|
Impedance sense, Jack-detection, Multi-streaming, 120 dB SNR stereo playback, 110 dB SNR recording input
|

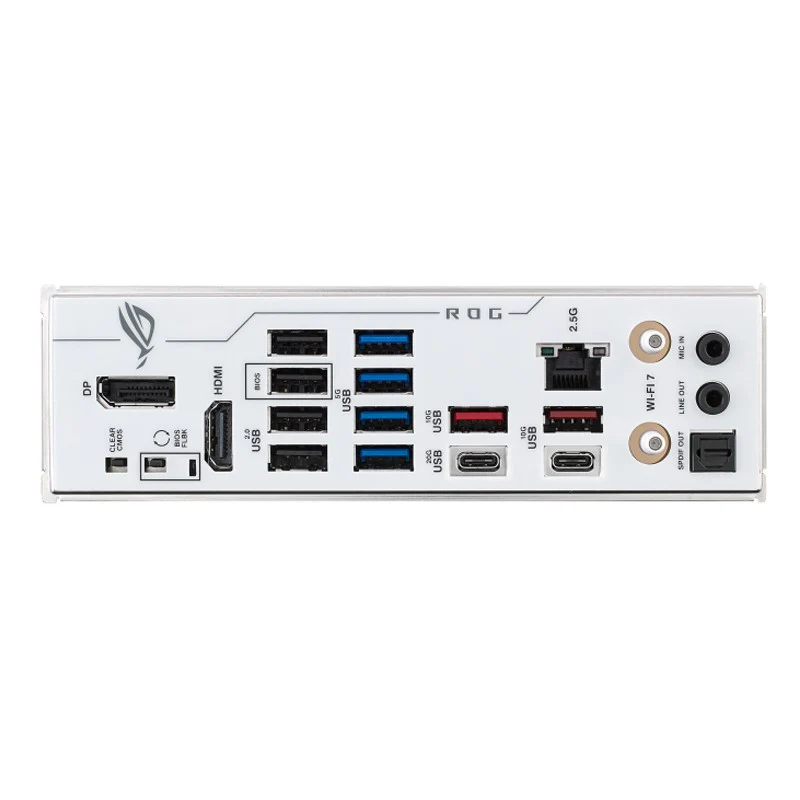

Back Panel I/O Ports
|
USB ports, DisplayPort, HDMI™ port, Wi-Fi module, Ethernet, Audio jacks, Optical S/PDIF out, BIOS FlashBack™ button, Clear CMOS button
|
Internal I/O Connectors
|
Fan headers, Power connectors, M.2 slots, SATA ports, USB connectors, Addressable Gen 2 headers, Aura RGB header, CPU Over voltage jumper, Front panel audio header, System panel header, Thunderbolt™ (USB4®) header, etc.
|
Special Features
|
Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, Front Panel USB 20Gbps with PD Fast Charge Support
|
Software Features
|
ROG CPU-Z, DTS® Sound Unbound, Armoury Crate, AIDA64 Extreme, Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving, Sonic Studio, Two-Way AI Noise Cancelation, AI Suite 3, Easy Optimization with AI Overclocking, TPU, DIGI+ VRM, Turbo app, PC Cleaner, MyASUS, USB Wattage Watcher, Intel® Unison™, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
|
UEFI BIOS
|
AI Overclocking Guide, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, FlexKey, MemTest86
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|

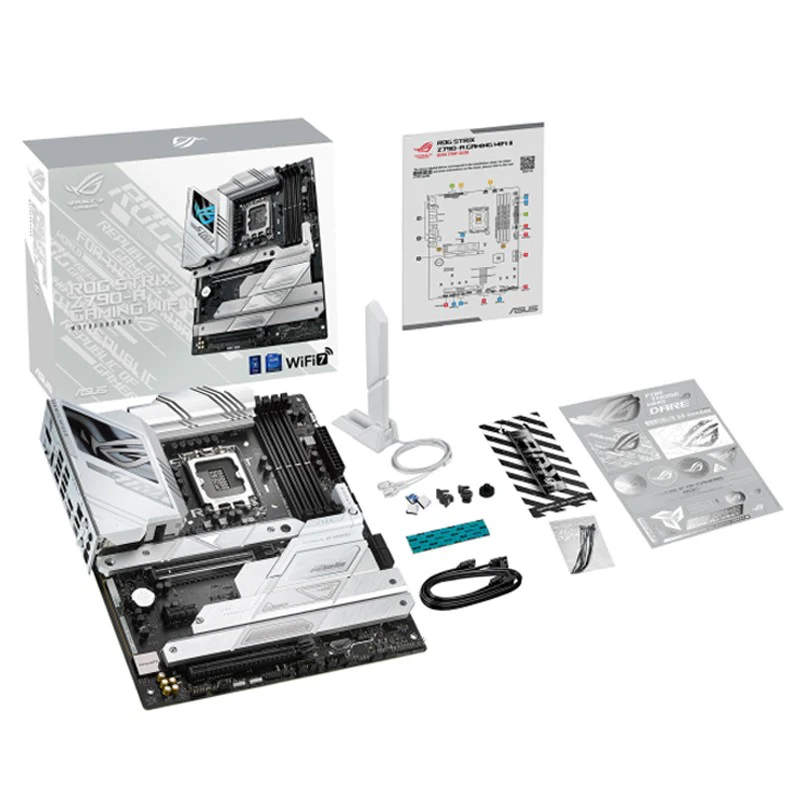

Accessories
|
SATA cables, Additional Cooling Kit, Wi-Fi Q-Antenna, Cable ties, M.2 backplate Q-Latch, ROG key chain, Strix stickers, M.2 rubber packages, Quick start guide
|
Operating System
|
Windows® 11, Windows® 10 64-bit
|
Form Factor
|
ATX Form Factor (12 inch x 9.6 inch)
|
|
