Specifications:
CPU Socket
|
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors
|
Chipset
|
Intel® Z790
|
Memory
|
4 x DIMM slots, max. 192GB
|
Memory Support
|
DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
|
Memory Architecture
|
Dual Channel Memory Architecture
|
Memory Features
|
Supports Intel® Extreme Memory Profile (XMP), DIMM Flex, OptiMem II, ASUS Enhanced Memory Profile II (AEMP II)
|
Graphics Outputs
|
1 x DisplayPort, 1 x HDMI™ port
|
Graphics Support
|
Graphics specifications may vary between CPU types. Refer to www.intel.com for updates.
|
Expansion Slots (CPU)
|
1 x PCIe 5.0 x16 slot (supports x16 mode)
|
Expansion Slots (Chipset)
|
2 x PCIe 4.0 x16 slots (support x4 mode)
|
PCIEX16(G5) Operation
|
When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.
|
Storage
|
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
|
M.2 Slots (CPU)
|
M.2_1 (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
|
M.2 Slots (Chipset)
|
M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
|
Ethernet
|
1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
|

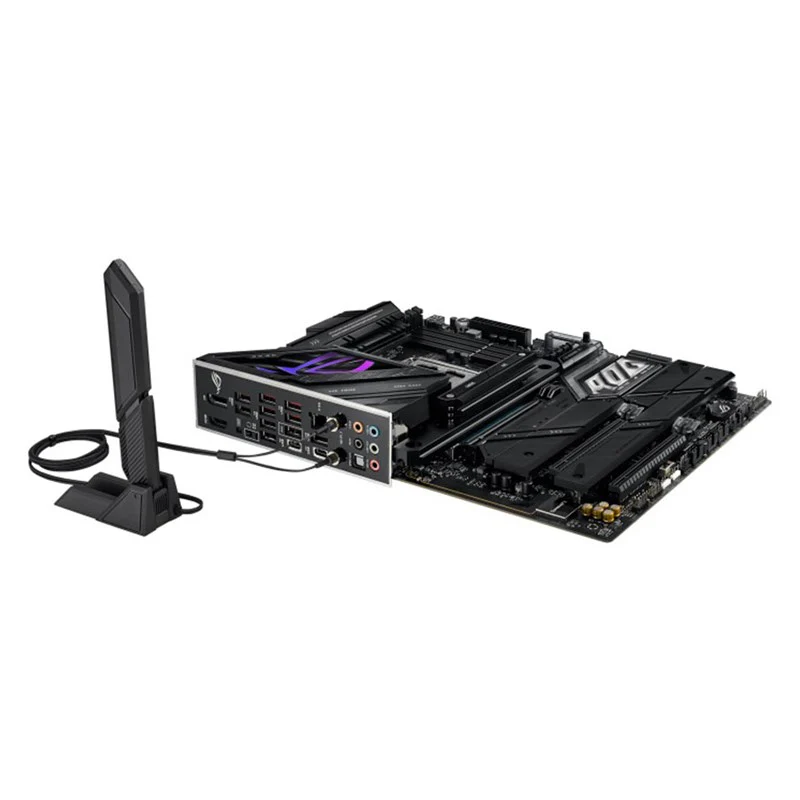

Wireless & Bluetooth
|
Intel® Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Bluetooth® v5.4
|
USB Ports (Rear)
|
1 x USB 20Gbps port (1 x USB Type-C®), 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®)
|
USB Ports (Front)
|
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge), 2 x USB 5Gbps headers, 3 x USB 2.0 headers
|
Audio
|
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
|
Audio Features
|
Impedance sense, Jack-detection, Multi-streaming, 120 dB SNR stereo playback output, 110 dB SNR recording input, Supports up to 32-Bit/384 kHz playback on front panel
|

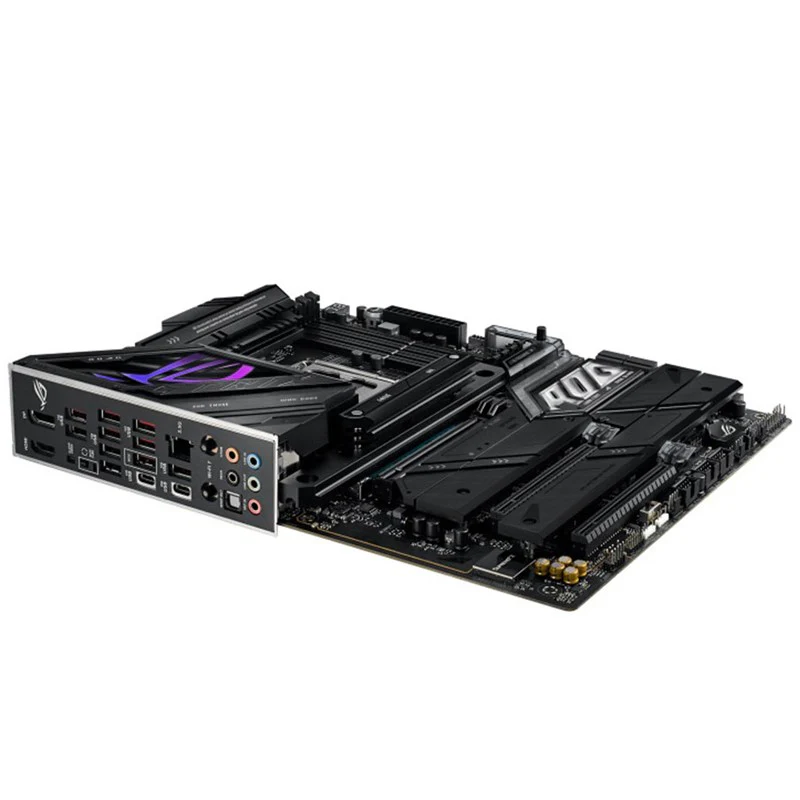

Back Panel I/O Ports
|
1 x USB 20Gbps port (1 x USB Type-C®), 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C®), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Intel® 2.5Gb Ethernet port, 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button
|
Internal I/O Connectors
|
Fan headers, Power connectors, M.2 slots, SATA ports, USB connectors, Addressable Gen 2 headers, Alternation PCIe Mode Switch, AURA RGB header, CPU over voltage jumper, Front panel audio header, Start button, System Panel header with Chassis intrude function, Thermal Sensor header, Thunderbolt™ (USB4®) header
|
Special Features
|
Extreme OC Kit (Start button), Extreme Engine Digi+ (5K Black Metallic Capacitors), ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Code, Q-DIMM, Q-LED), ASUS Thermal Solution (M.2 heatsink backplate, M.2 heatsink, VRM heatsink design), ASUS EZ DIY (BIOS FlashBack™ button, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM), AURA Sync (AURA RGB header, Addressable Gen 2 RGB headers), Front Panel USB 20Gbps with PD Fast Charge Support (Up to 30W fast charging and USB Wattage Watcher)
|
Software Features
|
ROG Exclusive Software (ROG CPU-Z, DTS® Sound Unbound), ASUS Exclusive Software (Armoury Crate, AIDA64 Extreme, Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving, Sonic Studio, Two-Way AI Noise Cancellation), AI Suite 3 (Easy Optimization with AI Overclocking, TPU, DIGI+ VRM, Turbo app, PC Cleaner), MyAsus, USB Wattage Watcher, Intel® Unison™, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
|
UEFI BIOS
|
AI Overclocking Guide, ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, FlexKey, MemTest86)
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|

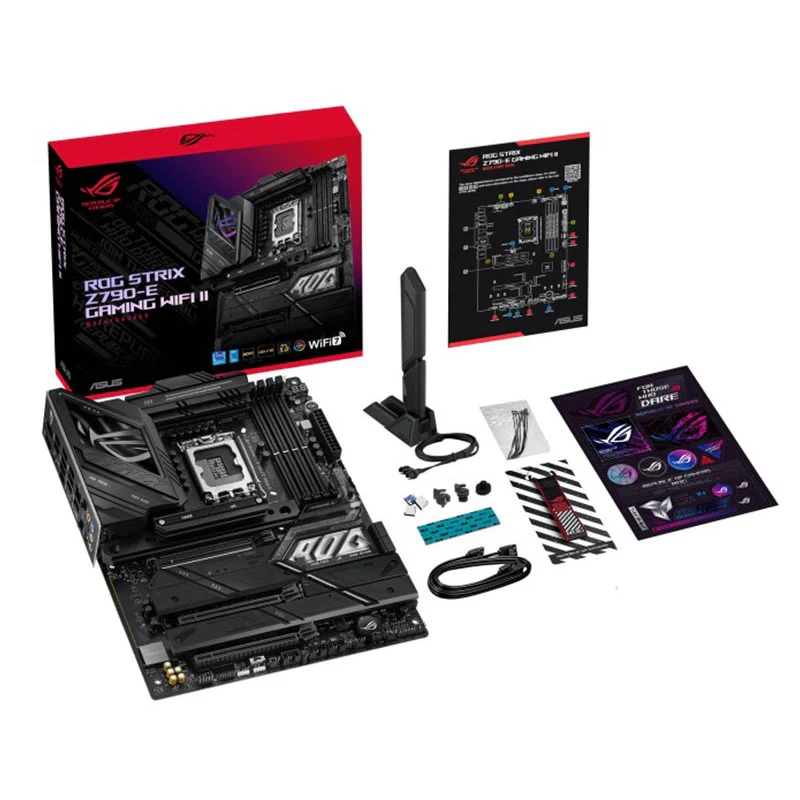

Accessories
|
Cables (2 x SATA 6Gb/s cables), Additional Cooling Kit (1 x Thermal pad for M.2), Miscellaneous (1 x ASUS Wi-Fi Q-Antenna, 1 x Cable ties package, 1 x M.2 backplate Q-Latch package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 2 x M.2 Rubber Packages, 1 x M.2 backplate Rubber Package)
|
Documentation
|
1 x Quick start guide
|
Operating System
|
Windows® 11, Windows® 10 64-bit
|
Form Factor
|
ATX Form Factor (12 inch x 9.6 inch)
|
|
