Specifications:
CPU Socket
|
Intel® LGA 1700 socket
|
CPU Support
|
Intel® Core™ 14th & 13th Gen, 12th Gen, Pentium® Gold, Celeron® Processors
|
Chipset
|
Intel® Z790 Chipset
|
Memory
|
4 x DIMM slots, max. 192GB, DDR5 7800+(OC) / 7600(OC) / ...
|
Graphics
|
1 x DisplayPort, 1 x HDMI™ port
|
Expansion Slots
|
1 x PCIe 5.0 x16 (for 14th & 13th & 12th Gen Intel® Core™), 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
|
Storage
|
4 x M.2 slots (PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports
|
Ethernet
|
1 x Intel® 2.5Gb Ethernet, TUF LANGuard
|
Wireless & Bluetooth
|
Wi-Fi 6E (802.11ax), Bluetooth® v5.3
|
USB
|
Rear USB: 1 x USB 20Gbps Type-C, 3 x USB 10Gbps (2 x Type-A + 1 x Type-C), 4 x USB 5Gbps (Type-A) Front USB: 1 x USB 20Gbps Type-C, 1 x USB 5Gbps header (supports 2 additional ports), 2 x USB 2.0 headers (supporting 4 additional ports)
|
Audio
|
Realtek S1220A 7.1 Surround Sound, High Definition Audio CODEC
|

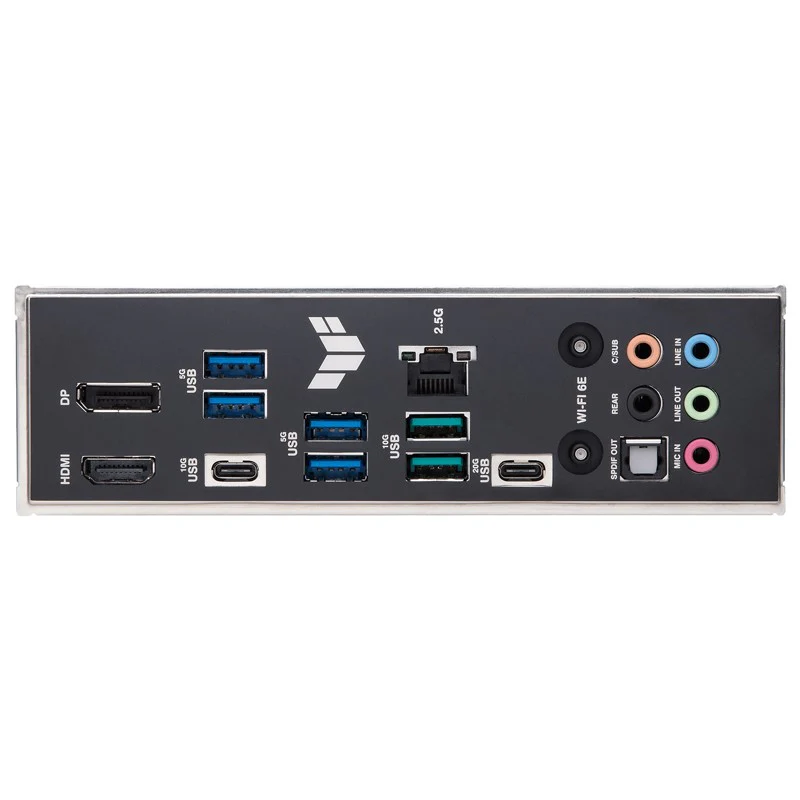

Back Panel I/O Ports
|
1 x USB 20Gbps Type-C, 3 x USB 10Gbps (2 x Type-A + 1 x Type-C), 4 x USB 5Gbps (Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 5 x Audio jacks, 1 x Optical S/PDIF out port
|
Internal I/O Connectors
|
Various headers for fans, power, storage, USB, and others
|
Special Features
|
ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync, Front Panel USB 20Gbps with PD Fast Charge Support
|
Software Features
|
ASUS Exclusive Software (Armoury Crate, AI Suite 3, MyAsus, USB Wattage Watcher, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers, WinRAR), UEFI BIOS with AI Overclocking Guide
|
BIOS
|
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|
Accessories
|
Cables: 2 x SATA 6Gb/s, Miscellaneous: ASUS WiFi Q-Antenna, TUF GAMING sticker, M.2 rubber packages, Screw package for M.2 SSD, Documentation: TUF certification card, Quick start guide
|
Operating System
|
Windows® 11, Windows® 10 64-bit
|
Form Factor
|
ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
|
|
