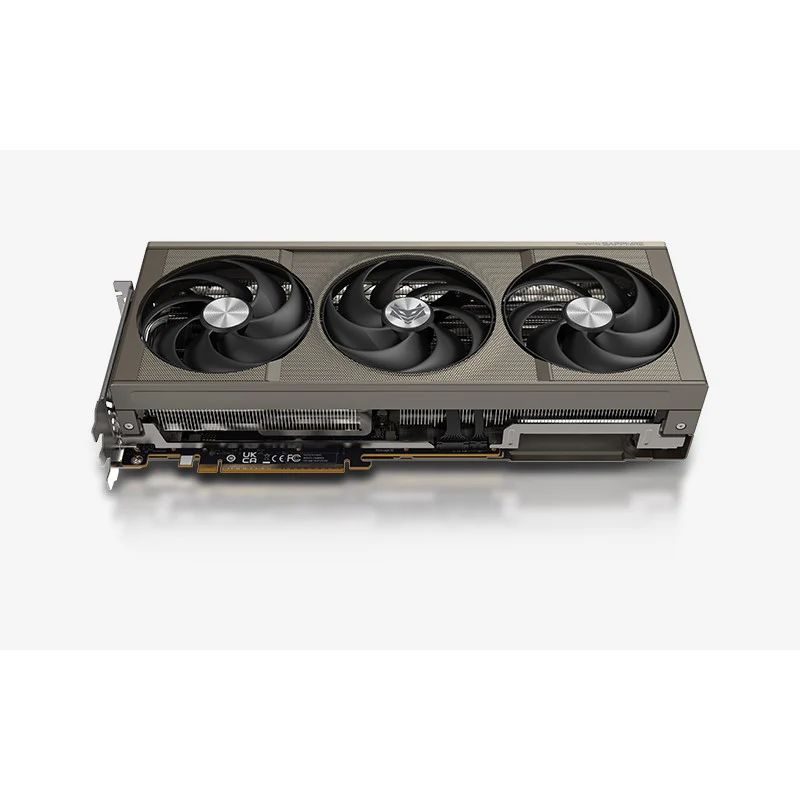

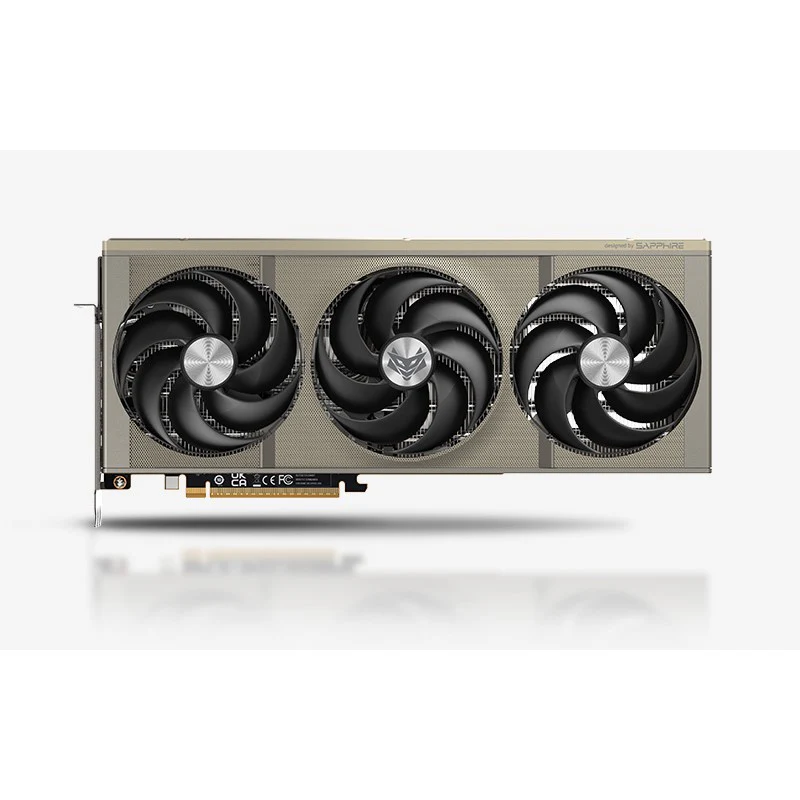

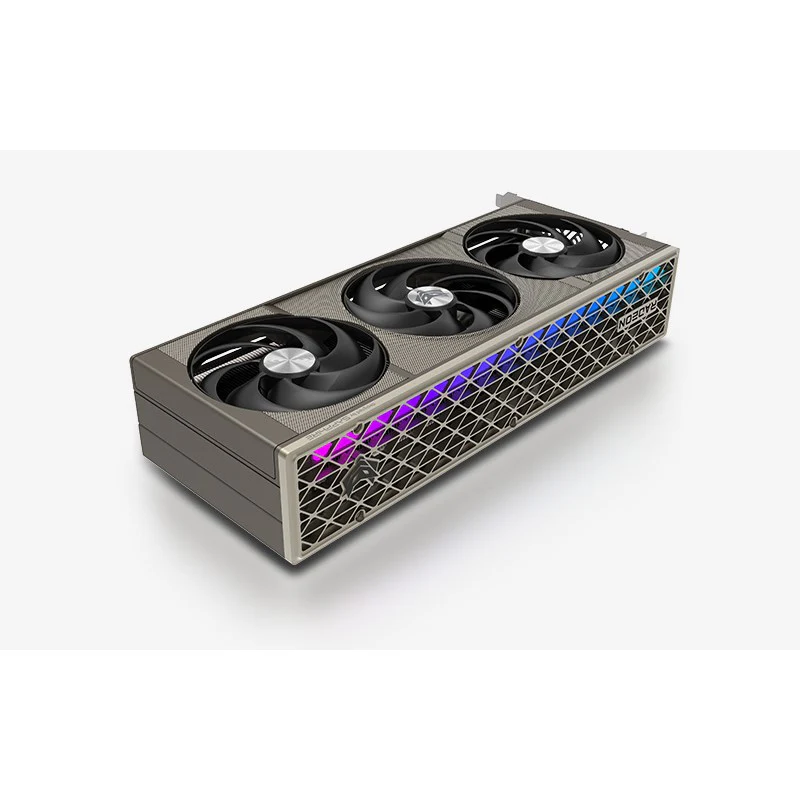

Sapphire NITRO+ AMD Radeon RX 9070 XT OC 16GB GDDR6 Gaming Graphics Card

Sapphire NITRO+ AMD Radeon RX 9070 XT OC 16GB GDDR6 Gaming Graphics Card

Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

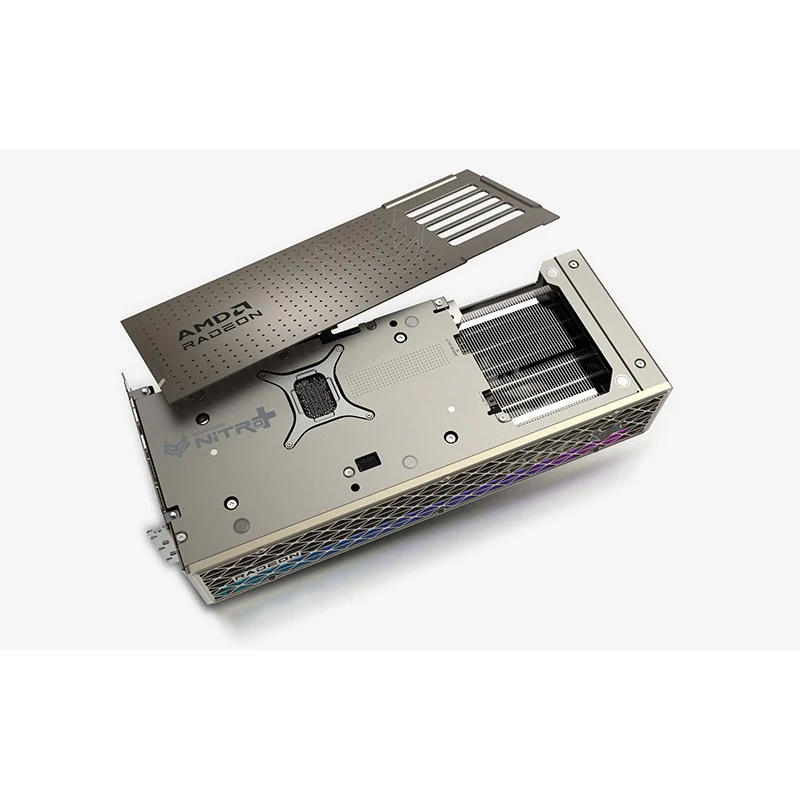

Quick Connect MagniPlate

The magnetic backplate on the graphics card combines sleek design with practical functionality. Engineered for effortless installation, its magnetic attachment ensures a secure fit while enhancing heat dissipation and overall durability. This premium feature not only protects your graphics card but also elevates your build with a clean, modern aesthetic—perfect for gamers and creators who demand performance and style.

AeroCurve Fan Blade

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

What are the benefits of Sapphire Graphics Card ?

• Honeywell PTM7950 thermal interface material delivers superior heat transfer for better cooling, reliability, and longer GPU lifespan

• Quick Connect MagniPlate magnetic backplate allows easy installation, improves durability, and enhances heat dissipation

• Sleek magnetic backplate design adds a clean, modern look to your build

• AeroCurve fan blades reduce air friction for stronger airflow and better static pressure

• Maintains efficient cooling performance while keeping noise levels low

GPU

AMD Radeon RX 9070 XT Graphics Card

AMD RDNA 4 Architecture

Engine Clock

Boost Clock: Up to 3060 MHz

Game Clock: Up to 2520MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

4096

Compute Units

64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64 MB

Ray Accelerators

64

AI Accelerator

128

Memory Size/Bus

16 GB/256 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI: 7680×4320

DisplayPort 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

2x HDMI

2x DisplayPort 2.1a

BIOS Support

UEFI

Game Index

4K

Sapphire Features

Quick Connect MagniPlate

STEALTH Hidden Power Cable

12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)

Honeywell PTM7950 Thermal Interface Material (TIM)

AeroCurve Fan Blade

Free Flow

FrameDefense

Integrated Cooling Module

Cold Rolled Steel Frame

Tri-X Cooling Technology

High TG Copper PCB

Optimized Composite Heatpipes

Metal Backplate

ARGB Light Bar

Fan Quick Connect

Two-Ball Bearing Fans

Premium 16-Phase Digital Power Design

Fuse Protection

Intelligent Fan Control

Precision Fan Control

TriXX Supported

Performance vs. Efficiency Quicksets

Glow!

Fan Check

TriXX Boost

External RGB LED MB Synchronization

Form Factor

3.2 slot, ATX

Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm

Power Consumption

330W Typical Board Power

OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 850 Watt Power Supply

12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)

PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8 GB of system memory. 16 GB recommended.
