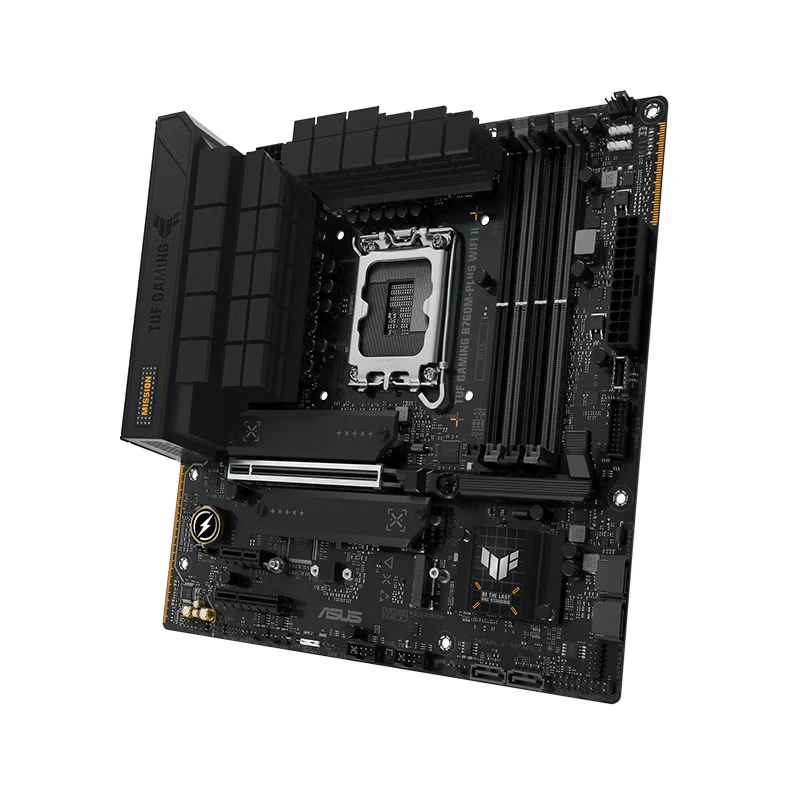

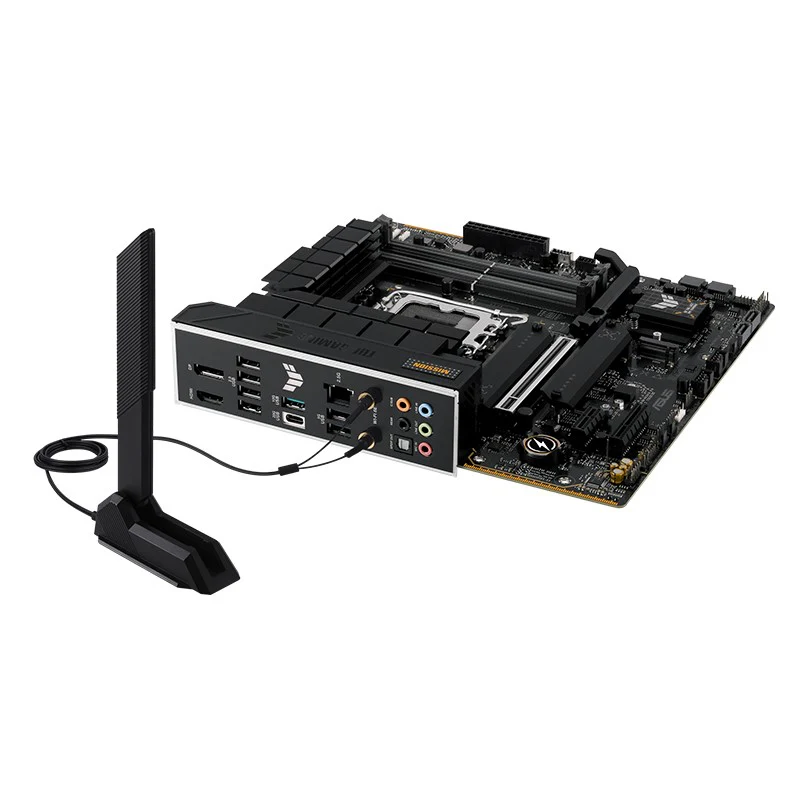

Asus TUF Gaming B760M-PLUS Wi-Fi II DDR5 mATX Gaming Motherboard

Asus TUF Gaming B760M-PLUS Wi-Fi II DDR5 mATX Gaming Motherboard

All-Around Energy Efficiency

The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

Armoury Crate

The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.

Premium Power Delivery

12+1+1 power stages are each rated to handle up to 50 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

Six-Layer PCB Design

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

8+8 PIN ProCool Power Connectors

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Chokes

Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.

Digi+ VRM

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

CPU

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel B760 Chipset

Memory

4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

Graphics

1 x Display Port

1 x HDMI port

Expansion Slots

Intel CoreTM Processors (14th & 13th & 12th Gen)

1 x PCIe 5.0 x16 slot

Intel B760 Chipset

1 x PCIe 4.0 x4 slot

1 x PCIe 3.0 x1 slot
